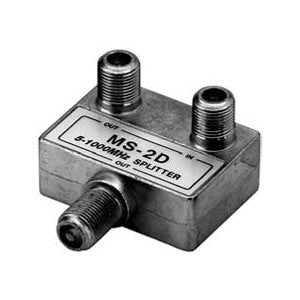

Broadband 5~1000 MHz frequency range High-performance printed board circuitry provides improved hum modulation and Intermodulation parameters to ensure superior signal quality (DSU-P Series) Yellow-chromate plated zinc-alloy diecast housing ensures excellent ground bonding and long corrosion-free service life in indoor/outdoor applications.
Epoxy-sealed back cover provides effective EMI-RFI shielding >-70 dB, eliminating signal ingress to provide distortion-free pictures 1-inch centered 3/8˝ long precision machined F-connector threads ensure improved port-to-connector interface and accommodate external security devices High retention internal seizing pins provide improved connectivity to connector center lead
Specifications:
Insertion Loss (In-Out) 3.5dB Typical Trace A
Return Loss (Output) 27dB Typical
Isolation (Out-Out) 34dB Typical
Dimensions 1.8˝(L) x 1.6˝ (W) x 1.0˝(H)
