FACTOR V-66 Professional Multiroom Audio System

Call 1-800-888-8101 for pricing

PN / FAC-V-66 *

Professional Multiroom Audio System

Features:
V-66 Professional Multiroom Audio System
Distribute 6 stereo audio signals to 6 rooms
Any source to any room simultaneously
Cascade-able for larger systems up to 18 zones
Complete Infrared control
Discrete source matrix control
Bi-directional RS232 control of all functions
Easy integration with master control systems
Six stereo analog audio inputs
One digital SPDIF optical audio input
Six stereo pre-amp outputs
Six discrete Infrared output ports
One master Infrared output port
Seven 12V trigger outputs
Master mute 12V trigger input
Switchable AGC automatic source gain control
All zones (play source one)
12V trigger input (party mode or paging)
50 watts RMS output power per speaker @ 4ohms
100 watts RMS bridge mode
Control4 & Compass Control Drivers Available

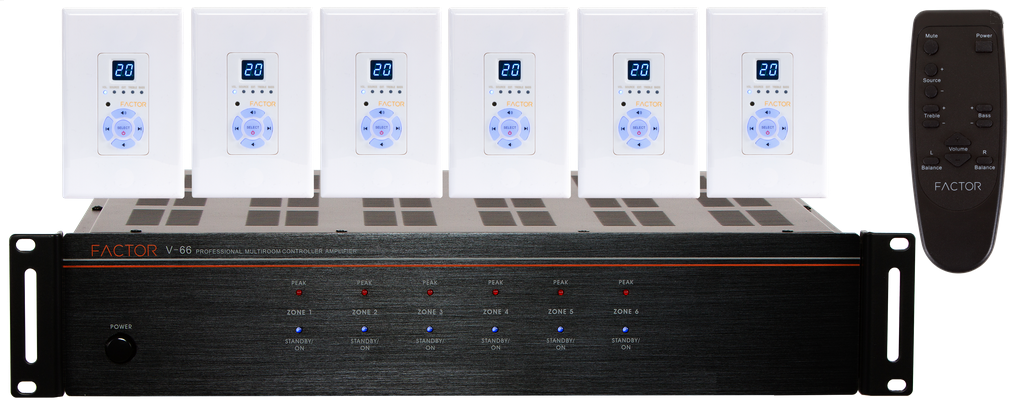

Kit includes:
1 x V-66 master controller amplifier

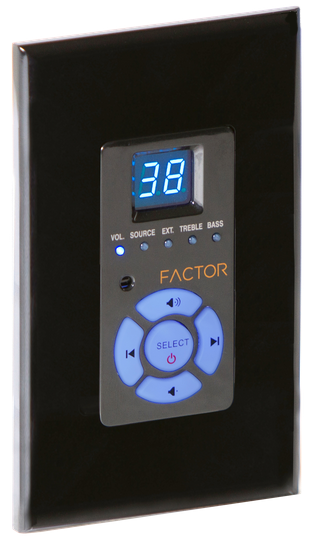

6 x LED keypads
1 x Keypad hub
1 x Master IR remote control
1 x Expansion cable
1 x 2U Rack mounting kit
3 Year Warranty
Specifications:
RMS Power @ 8ohms 25 watts x 12
RMS Power @ 4ohms 50 watts x 12
RMS Power @ 8ohms 100 watts x 6 (bridge mode)
S/N Ratio >85dB A Weighted
THD <0.1%
Frequency Response 20Hz-20kHz
Input Impedance >47Kohms
Input Sensitivity 250mv
Amplifier Protection Overload, short circuit & thermal
Trigger System on DC + 12V
Trigger External Mute DC + 12V
Infrared Frequency 38kHz
Input Connectors 3.5mm stereo,
RCA stereo, Digital SPDIF Optical
Output Connectors Terminal Block, 3.5mm mono
Power Supply AC115V/60Hz or
230V/50Hz switchable
Power Consumption
1250 watts
Dimensions:
W- 19”/482.6mm w/rack kit
W- 17”/430mm no/rack kit
H - 3.5”/89mm
D - 16.4”/416mm
Shipping Weight 25lbs (11kg)
