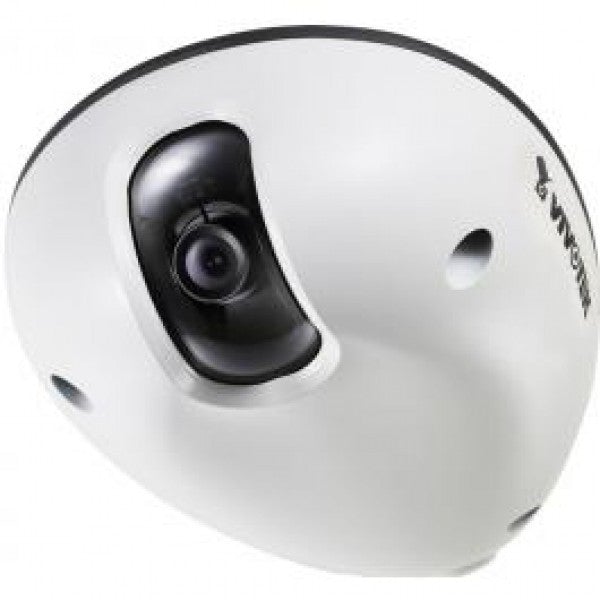

Vivotek MD8562 2MP Vandal-proof Mobile Surveillance Network Camera
Couldn't load pickup availability
PN / VIV-MD8562 *
Overview
VIVOTEK MD8562 are compact, 2-megapixel network cameras geared toward transportation applications such as buses, trains, and other vehicles. With full EN50155 compliance & IP67-rated design, the camera can withstand shock, vibration, humidity, dust, and temperature fluctuations, maintaining stable and reliable video during vehicle movement. Furthermore, the vandal-proof metal housing effectively provides robust protection from vandalism. As such, the combination of high resolution imaging and protective housing endows the MD8562 with the rugged reliability required to maximize passenger safety and optimize mobile surveillance.
By utilizing high-definition 1920x1080 resolution, the MD8562 can deliver extremely clear and detailed images, achieving accurate identification of people or objects with ease. With WDR enhancement, users can identify image details in extremely bright or dark environments. Video footage of in-vehicle passenger activities or vehicle accidents captured with this camera can thus be used for post-event forensic evidence.
With the tamper detection feature, the MD8562 are truly robust and intelligent cameras that keep security staff notified once suffering video loss from being blocked or spray-painted. PoE (Power-over-Ethernet) also allows the MD8562 to be operated and powered with a single Ethernet cable, giving greater ease of installation. In order to facilitate on-board storage and data portability, the camera is also complete with a MicroSD/SDHC card slot for local recording. With such a broad spectrum of advanced features, the MD8562 are the best choices for mobile surveillance.
Key Features
- 2-megapixel CMOS Sensor
- Up to 30 fps @ 1080p Full HD
- Wide Angle Fixed Lens
- EN50155 Co-megapixelliance for Professional Mobile Surveillance
- Real-time H.264, MPEG-4 and MJPEG compression (Triple Codec)
- WDR Enhancement for Unparalleled Visibility in Extremely Bright or Dark Environments
- Vandal-proof IK10-rated and Weather-proof IP67-rated Housing
- Built-in 802.3af Compliant PoE
- Built-in MicroSD/SDHC Card Slot for On-board Storage
Specifications
| Lens | f=2.8 mm F 2.0 Board lens Fixed |
| Field of View | 110° (horizontal) 81.5° (vertical) 142° (diagonal) |
| Shutter Time | 1/5 ~ 1/32,000 sec. |
| Image sensor | 1/2.7" progressive scan CMOS in 1920x1080 Resolution |
| Minimum Illumination | 0.2 Lux @ F2.0 ( Color ) |
| Video | Compression: H.264, MPEG-4 & MJPEG Streaming: Simultaneous multiple streams H.264 streaming over UDP, TCP, HTTP or HTTPS H.264/MPEG-4 multicast streaming MPEG-4 streaming over UDP, TCP, HTTP or HTTPS MJPEG streaming over HTTP or HTTPS Supports activity adaptive streaming for dynamic frame rate control Supports video cropping for bandwidth efficiency Supports ePTZ for data efficiency Supports 3GPP mobile surveillance Frame rates: H.264: Up to 30 fps at 1920x1080 MPEG-4: Up to 30 fps at 1920x1080 MJPEG: Up to 30 fps at 1920x1080 |
| Image Settings | Adjustable image size, quality, and bit rate Time stamp and text caption overlay Flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance and exposure control AGC AWB AES Supports privacy masks BLC (Backlight compensation) WDR enhanced |
| Audio | Compression GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps G.711 audio encoding, bit rate: 64 kbps, μ-Law or A-Law Interface: External microphone input Supports audio mute |
| Networking | 10/100 Mbps Ethernet, RJ-45 * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. ONVIF support Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X |
| Triple-window video motion detection 1 D/I for external sensor and alarm Event notification using HTTP, SMTP, FTP Local recording of MP4 files Tamper Detection |
|
| On-board Storage | MicroSD/SDHC card slot Stores snapshots and video clips |
| Security | Multi-level user access with password protection IP address filtering HTTPS encrypted data transmission 802.1X port-based authentication for network protection |
| Users | Live viewing for up to 10 clients |
| Dimensions | Depth: 130mm Width: 107mm Height: 47mm Cable length: 520 mm Cable diameter: Ø 7.2 mm; Max. Connector: Ø 14 mm |
| Weight | Net: 450 g |
| LED Indicator | System restore status indicator |
| Power | Power consumption: Max. 4.3 W Power consumption: Max. 7.5 W (with heater) 802.3af Power-over-Ethernet (Class 3) |
| Housing | Weather-proof IP67-rated housing Vandal-proof IK10-rated metal housing |
| Approvals | CE C-Tick FCC LVD VCCI EN50155 |
| Operating Environments | Temperature: -25°C ~ 55°C (-13°F ~ 131°F) Humidity: 90% |
| Viewing System Requirements | OS: Microsoft Windows 7 / Vista / XP / 2000 Browser: Mozilla Firefox Browser: Internet Explorer 7.x or above VLC: 10.5 or above QuickTime: 6.5 or above Cell phone: 3GPP player Real Player 10.5 or above |
| Installation Management and Maintenance | Camera angle adjustment: Tilt range: 90° (0°~90°) Installation Wizard 2 ST7501 32-channel recording software Supports firmware upgrade |
| Applications | SDK available for application development and system integration |
| Warranty | 36 Months |
