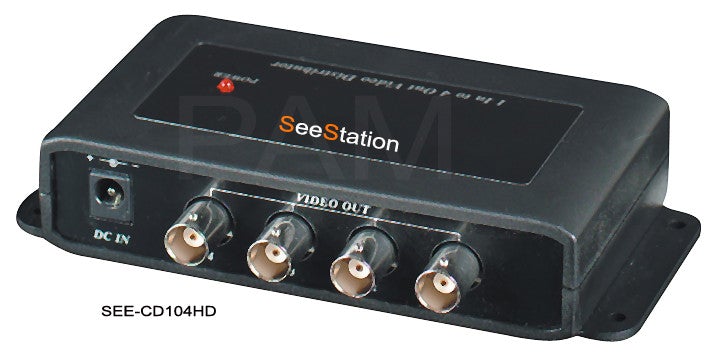

SEESTATION CD104HD Single Input to 4 Output HD-TVI/AHD/HDCVI Video Splitter / Distributor (BNC)

Call 1-800-888-8101 for pricing
Vendor SeeStation
In stock

PN / SEE-CD104HD *
SEE-CD104HD Single Input to 4 Output HD-TVI/AHD/HDCVI Video Splitter / Distributor (BNC)
(power adapter included)

Product ID: CD104HD

1 Input 4 Output Video Splitter / Distributor

Specifications:

CD104HD is 1 input 4 output HD-TVI/AHD/HDCVI Video distributor with amplifier function. They are suitable for far distance, different floor in a building or different electrical field.

Features:
  • Red LED: power on/off.
  • It can be connected video camera, multiplexer, VCR, DVR…etc.
  • 1 input 4 output HD video distributor.
  • Input cable distance: 720p 500M(Max),1080p: 200M (Max)
  • Output cable distance 100M (Max)
  • Power supply included.

ITEM NO.

CD104HD

Video Input Channel

BNC x 1

Video Output Channel

BNC x 4

Video Input Level

0.8~1.2Vp-p, 75 Ohms

Video Output Level

1Vp-p (Standard), 75 Ohms

Video Bandwidth

350 MHz -3dB

Power Supply

DC12V 500mA

Power Consumption

300mA

Temperature

Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95%

Dimensions   mm

138 x 85.6 x 29.5

Weight        g

120
