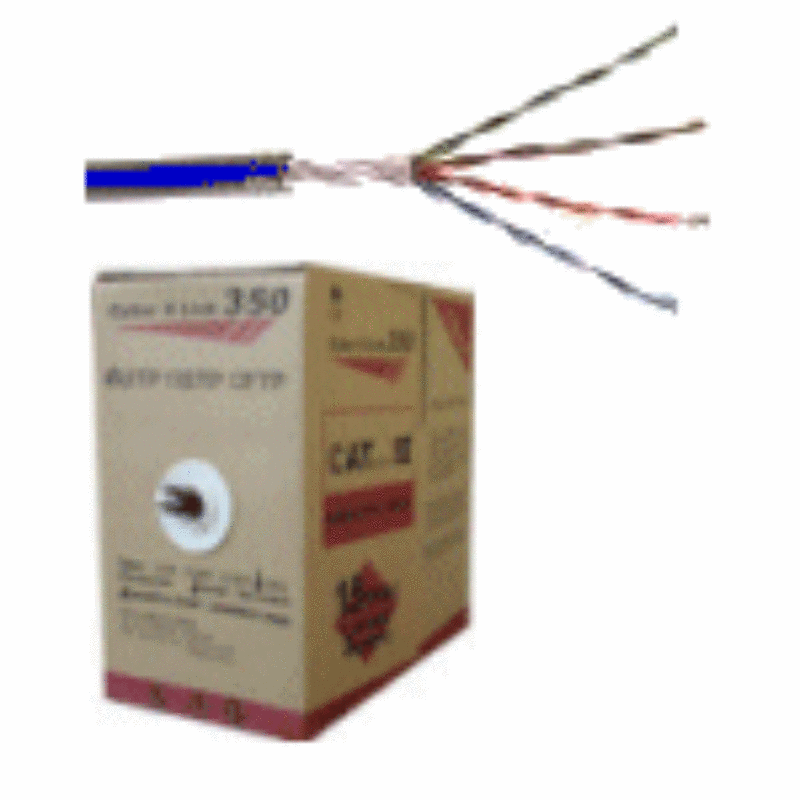

WAVNET 5624081B-BK: CAT 5E 350 MHz Solid Copper Blue 1000' Box

Call: 800-888-8101

Fill Out Customer Application

PN / 5624081B-BK *

ETL Verified CMR Non-Plenum Category 5e Cable
UL LISTED

CABLE SPECIFICATIONS
DESCRIPTION
24 AWG Category 5e Unshielded Twisted Pair (UTP) Cable For Data Transmission up to 350MHz.This Cable is Non-Plenum Rated and Verified to Category 5e Electricals

CONDUCTOR
24 AWG Solid Bare Copper

INSULATION
HDPE - High-Density Polyethylene

COLOR CODE
Pair 1: White-Blue/Blue
Pair 2: White-Orange/Orange
Pair 3: White-Green/Green
Pair 4: White-Brown/Brown

SHIELD
 N/A

DRAIN WIRE
N/A

JACKET
 PVC; OD: CMR

JACKET COLOR
Multiple Optionjs

MARKING
UTP4-C5E-SOLID-CMR-XX-305----E303448 U/UTP 4PR 24AWG C(UL)US
 CMR---ETL VERIFIED TO ANSI/TIA-568-C.2 CAT.5E 350Mhz WW/YYXXXXFT

CAPACITANCE
5.6 nF/m Max

IMPEDANCE
85 - 115 Ohms

DC RESISTANCE
9.38 Ohms/100m

TEMPERATURE RATING
75

INDUSTRY STANDARDS
AGENCY APPROVALS  ETL
