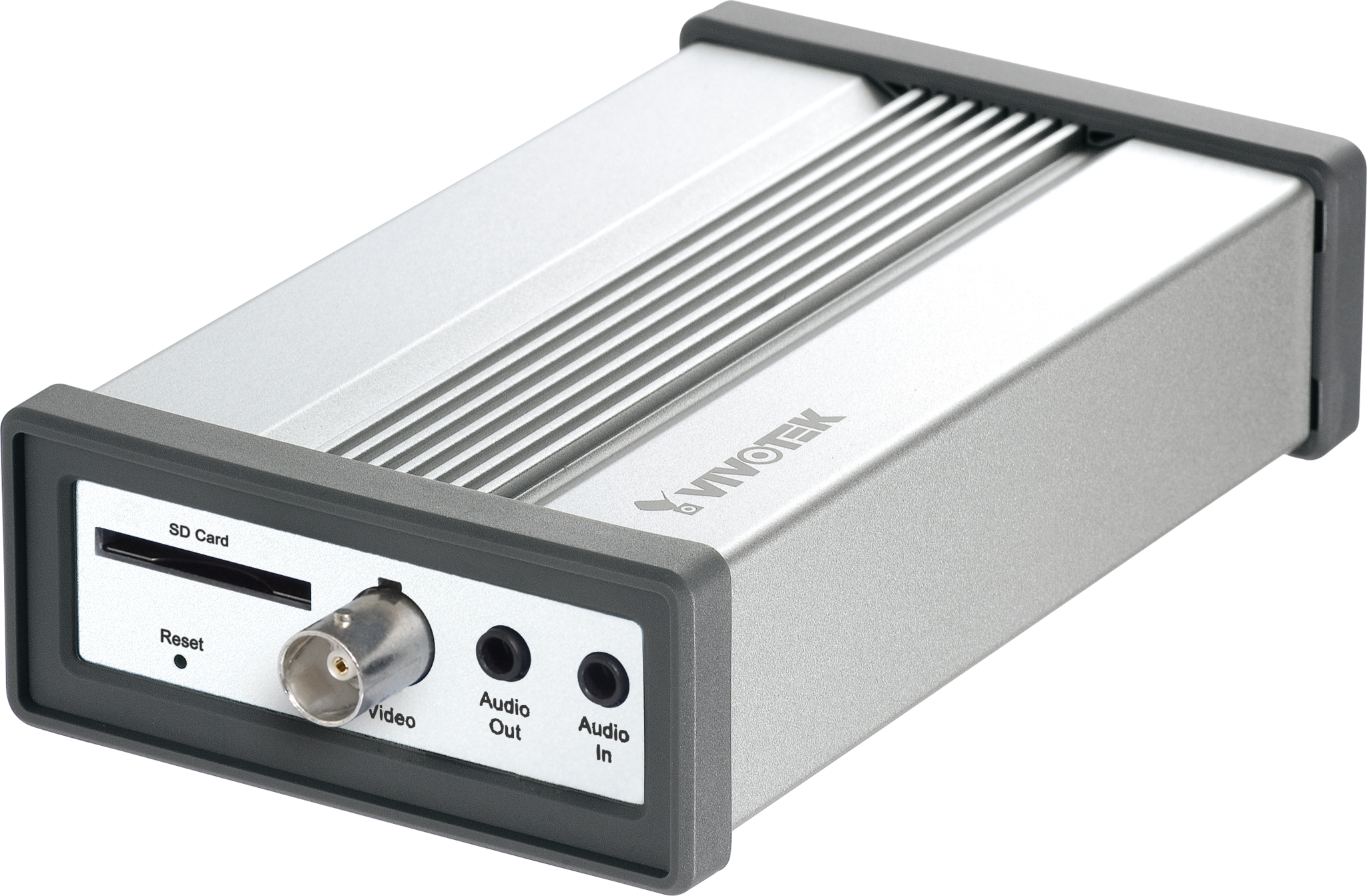

Vivotek VS8102 Network Video Server D1 H264
Couldn't load pickup availability
PN / VIV-VS8102 *
Overview
VIVOTEK VS8102 is a professional H.264 1-CH video server that helps you migrate from analog to digital surveillance system with ease. With the high-performance H.264 compression format, it drastically reduces the file sizes and conserves valuable bandwidth and storage space. Supporting simultaneous multiple streams, the video streams to be transmitted in either of H.264, MPEG-4 or MJPEG formats for versatile applications. The streams can also be individually configured with separate frame rates, resolution, and image quality so as to meet different platforms or bandwidth constraints.
With built-in intelligent video functions, such as motion detection & tamper detection, VS8102 is capable of upgrading an analog camera into an intelligent camera. The tamper detection function can detect events such as blockage, redirection, defocus, and spray-painting of camera lens, making it an intelligent solution to possible camera obstruction. Furthermore, the network security protocols, HTTPS and 802.1x, also upgrades the security level of the IP surveillance system.
There are several power management designs built in the VS8102, such as PoE (Power over Ethernet), DC 12V output for analog cameras, and AC 24V compatible design. These features make the VS8102 easy to install and integrate with the existing analog system. The built-in SD/SDHC card slot offers a convenient and portable storage option to prevent data loss in case of network disconnection.
The VS8102 also comes with VIVOTEK's ST7501 32-CH recording software for high scalability and easy-to-use operation. The VS8102 helps you easily upgrade to a full-featured, high-end IP surveillance solution using existing infrastructure.
Features
- Up to 30 fps in D1 Resolution
- Real-time H.264, MPEG-4, and MJPEG Compression (Triple Codec)
- Two-way Audio
- RS-485 Interface for PTZ Camera Control
- DC 12V Output for Analog Cameras
- DC 12V / AC 24V Compatible Power Input
- Built-in 802.3af Compliant PoE
- uilt-in SD/SDHC Card Slot for On-board Storage
Specifications
| Camera Control | PTZ camera control through RS-485 Supported devices and protocols: DynaDome / SmartDome, Pelco D, Lilin PIH-7x00, Pelco P, Samsung scc643, and customized types Supports CGI command serial driver |
| Video | Compression: H.264, MJPEG & MPEG-4 Streaming: Simultaneous multiple streams H.264 streaming over UDP, TCP, HTTP or HTTPS MPEG-4 streaming over UDP, TCP, HTTP or HTTPS MPEG-4 multicast streaming MJPEG streaming over HTTP or HTTPS Supports activity adaptive streaming for dynamic frame rate control Frame rates: H.264: Up to 30/25 fps at 720x480 (NTSC) / 720x576 (PAL) MPEG-4: Up to 30/25 fps at 720x480 (NTSC) / 720x576 (PAL) MJPEG: Up to 30/25 fps at 720x480 (NTSC) / 720x576 (PAL) |
| Image Settings | Adjustable image size, quality, and bit rate Time stamp and text caption overlay Flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance and exposure control Supports privacy masks |
| Audio | Compression: GSM-AMR speech compression, bit rate: 4.75 kbps ~ 12.2 kbps MPEG-4 AAC audio encoding, bit rate: 16 kbps ~ 128 kbps G.711 audio encoding, bit rate: 64 kbps, μ-Law or A-Law mode selectable Interface: Line level input: up to 1 Vrms Audio output Supports two-way audio Supports audio mute |
| Networking | 10/100 Mbps Ethernet, RJ-45 * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X |
| Triple-window video motion detection 1 D/I & 1 D/O for external sensor and alarm Event notification using HTTP, SMTP, FTP Local recording of MP4 files Tamper Detection |
|
| On-board Storage | SD/SDHC card slot Stores snapshots and video clips |
| Security | Multi-level user access with password protection IP address filtering HTTPS encrypted data transmission 802.1X port-based authentication for network protection |
| Users | Live viewing for up to 10 clients |
| Dimensions | Depth: 130mm Width: 78.35mm Height: 33.85mm |
| Weight | Net: 242 g |
| LED Indicator | System power and status indicator System activity and network link indicator |
| Power | 12V DC 24V AC Power consumption: Max. 5 W Power output: : 12V DC (350 mA) 802.3af Power-over-Ethernet (Class 1) |
| Approvals | CE C-Tick FCC LVD VCCI |
| Operating Environments | Temperature: 0 ~ 55 °C (32 ~ 131 °F) Humidity: 20% ~ 80% |
| Viewing System Requirements | OS: Microsoft Windows 7 / Vista / XP / 2000 Browser: Mozilla Firefox Browser: Internet Explorer 7.x or above VLC: 10.5 or above QuickTime: 6.5 or above Cell phone: 3GPP player Real Player 10.5 or above |
| Installation Management and Maintenance | Installation Wizard 2 ST7501 32-channel recording software Supports firmware upgrade |
| Applications | SDK available for application development and system integration |
| Warranty | 24 Months |
