PN / AX-AL100UL * ∣ Download datasheet

Linear Power Supply/Charger, Single Class 2 Output, 12VDC @ .75A, 16.5VAC, BC100 Enclosure

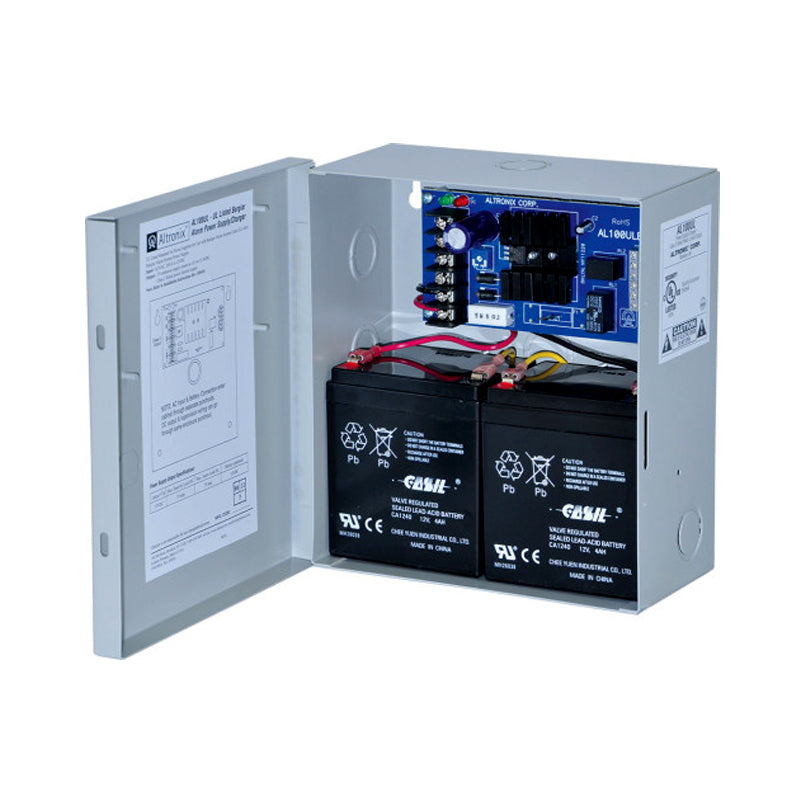

Altronix AL100UL linear power supply/charger converts a low voltage input into a 12VDC output.

Key Features

• 16.5VAC, 20VA from UL Listed, Class 2 transformer (sold separately).

Output

• 12VDC output.
• 750mA supply current.
• Class 2 Rated power limited output.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Back-up Battery

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switchover to stand-by battery when AC fails.
• Low battery disconnect prevents batteries from deep discharge.
• (Batteries are sold separately).

Supervision

• AC fail supervision (form "C" contacts).
• Low battery supervision (form "C" contacts).

Visual Indicators

• AC input and DC output LED indicators.

Temperature

• Operating temperature 32 to 120°F.
• Storage -4 to 158°F
• Relative Humidity 85% +/- 5%
• BTU/Hr. (approx.): 5 BTU/Hr.
• System AC input VA requirement: 26.45VA

Enclosure

• Wall mount enclosure for indoor use.
• Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
• 1/2" and 3/4" combination knockouts.

Weights (approximate):

• Product Weight: 6.4 Lbs. (2.9 kg).
• Shipping Weight: 6.9 Lbs. (3.13 kg).
