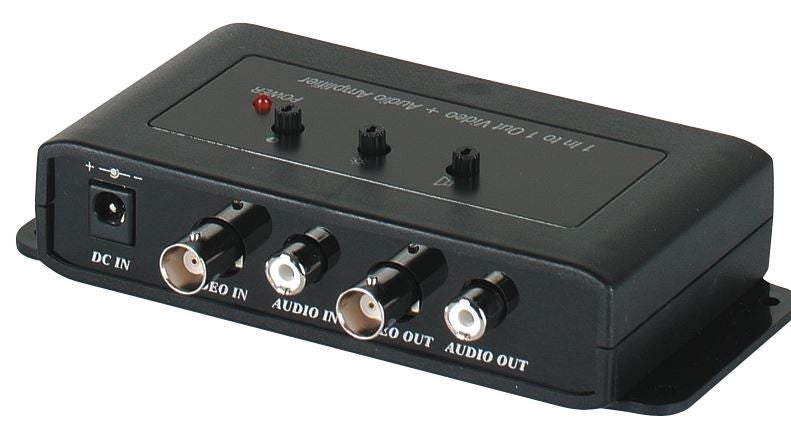

SEESTATION CA101A 1 Input to 1 Output Video with Audio Amplifier

$ 40.80
Login to see prices
Vendor SeeStation
In stock
View details

PN / SEE-CA101A *

Product ID: CA101A

1 Input to 1 Output Video with Audio Amplifier

Specifications:
  • Video Input Channel: 1, Video Output Channel: 1
    • Audio Input Channel: 1, Audio Output Channel: 1
  • Video Input Level: 0.8~1.2Vp-p, 75 Ohms
  • Video Output Level: 1Vp-p (Standard), 75 Ohms
    • Video Bandwidth:10hz - 10MHz
  • Power Supply: DC12V
    • Power Consumption:100mA
  • Dimensions (mm): 138x84x28
    • Weight: 110 g
    • Materia: ABS Black
Features:
  • Wide bandwidth, video gain compensation amplification.
  • HF compensation.
    • 10dB adjustable image gain.
    • Sharpness and Brightness adjustment.
  • Transmission range: 1000 meters (RG59 coaxial cable)
  • Red LED: power on/off.
    • It can be connected video camera, multiplexer, VCR, DVR…etc.
