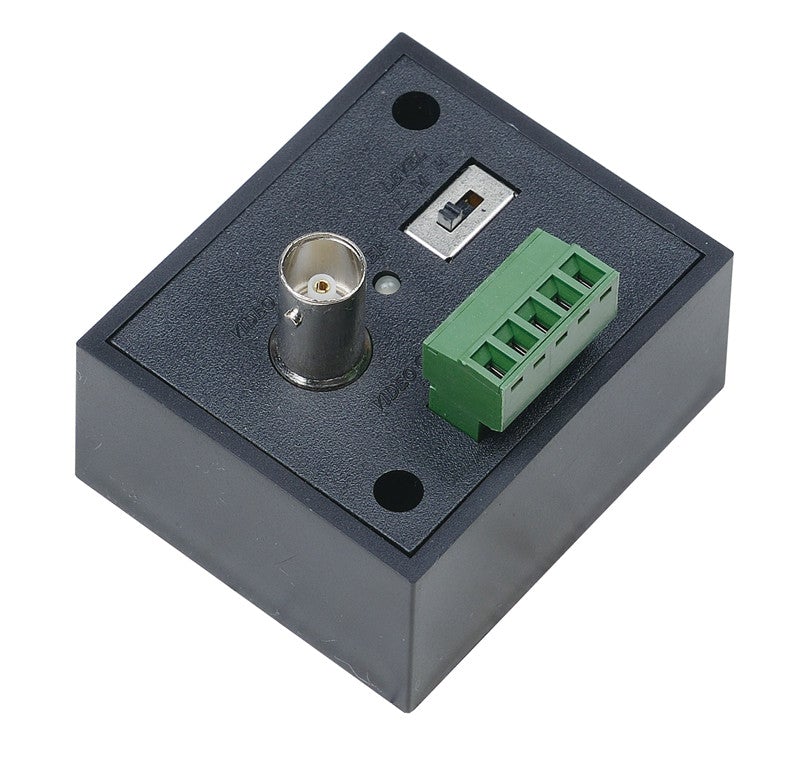

SEESTATION HD-TVI/HDCVI/AHD UTP Active Transmitter

PN / SEE-TTA111HDT *

Features:

• To send HD-TVI signal up to 300M over UTP cable.
• To send AHD signal up to 400M over UTP cable.
• To send HDCVI signal up to 500M over UTP cable.
• To work with passive receiver TTP111HD for good quality picture.
• Support resolution up to 1080p.
• Built in L, M, and H high frequency video gain.
• Built in transient protection and ground lifting, damaging voltage spike problems are eliminated.

• Video Format:  HD-TVI, HDCVI
• Video Input:  BNC x 1 (75 Ω，1 Vp-p)
• Video Output:  5 pin removable terminal x 1 (100 Ω)
• Switch:  Slide switch (3 level) x 1
• Cable:  UTP CAT5e/CAT6
• Transmission Distance:  Up to 1080P 300M
• Power Supply:  DC 12V 500mA
• Power Consumption:  70 mA ( Max)
• Temperature:  Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95%
• Dimensions W x H x D mm:  57.8 x 49.2 x 41.7
• Weight g:  70
