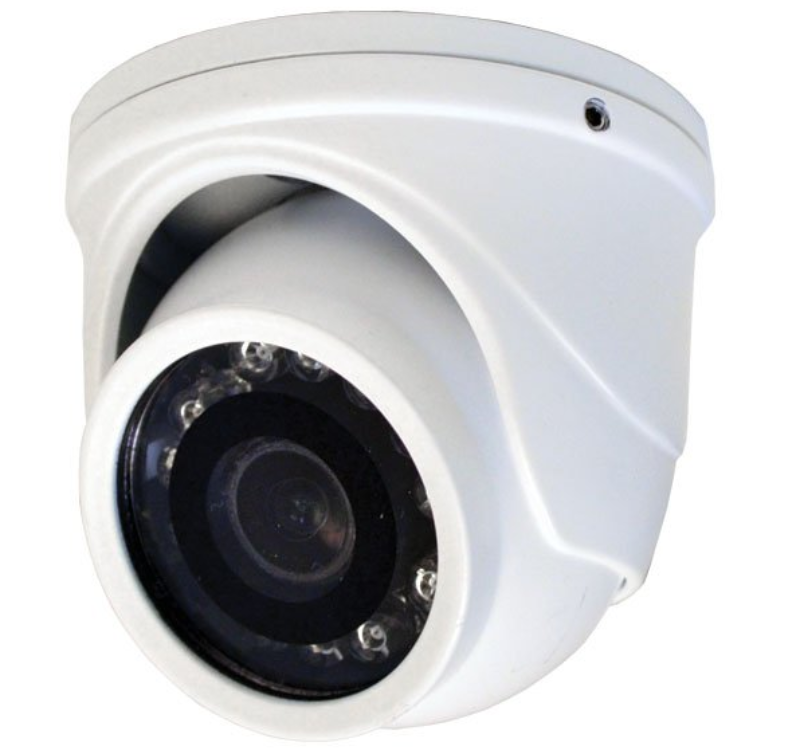

SPECO PRO-HT71TW: 2MP Mini-Turret TVI Color Camera with 2.9mm Fixed Lens

Call: 800-888-8101

Fill Out Customer Application

PN/ PRO-HT71TW* | Download data sheet

2MP Mini-Turret TVI Color Camera with 2.9mm Fixed Lens

The Speco Technologies HT71TW is a 2MP Mini-Turret TVI Color Camera with 2.9mm Fixed Lens it is a compact, durable, and feature-rich 2MP dome camera designed for reliable security monitoring. Its advanced imaging capabilities, robust construction, and compact size make it a perfect solution for both indoor and outdoor surveillance applications.

Key Features

• Image Sensor: 1/3” Progressive Scan CMOS, delivering high-quality 2MP resolution.
• Resolution: Captures sharp Full HD 1920 x 1080 video at 30fps.
• Effective Pixels: 1984 (H) x 1105 (V); Total Pixels: 2000 (H) x 1121 (V).
• Minimum Illumination: 0.00 lux with IR LEDs on, ensuring clear visibility even in complete darkness.
• Night Vision: 12 IR LEDs provide an IR range of up to 35 ft. (depending on scene reflection).
• Day/Night Modes: Auto, Color, BW, or External for flexible monitoring.
• Electronic Shutter Speed: Adjustable (Auto/Manual) for optimal performance in various lighting conditions.
• Scanning System: Progressive scanning ensures smooth and flicker-free video.
• Vandal and Weather Resistant: Cast aluminum construction and IP66 compliance make it durable and reliable in tough environments.

Additional Specifications

• Synchronization: Internal
• Communication: UTC for easy control of OSD settings.
• Video Output: 1.0Vp-p / 75 ohms
• S/N Ratio: More than 50dB for clear, noise-free images.
• Automatic Features: AGC and Auto White Balance for optimal image quality.
• Signal Distance: Operates up to 1600 feet.
• Power: Requires 12VDC (power supply not included); power consumption is 100mA (IR off) / 200mA (IR on).
• Operating Temperature: Functions reliably between 14°F and 120°F.
• Compact Dimensions: Measures just 2.36” (Dia.) x 2.15” (H), weighing only 10 oz.
• Certifications: FCC and RoHS compliant.

The Speco HT71TW provides a robust, reliable, and compact surveillance solution, offering exceptional performance and ease of use for a variety of security applications.
