118045S-DB: 18/4 Stranded DB 500ft

$ 440.00
Login to see prices
Vendor COMMUNICATIONS SUPPLY CORP
View details

PN / 118045S-DB *

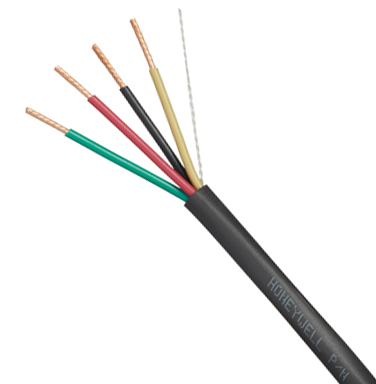

18/4 STRANDED DB 500FT

FEATURES:

  • Ratings FPL, CL2, Direct Burial, Sunlight Resistant
  • Approvals UL Listed
  • Conductor 18 AWG 19 Strand Bare Copper
  • Conductor Count 4
  • Insulation SRPVC (0.020" nom.)
  • Insulation Colors Black, Red, Green, Yellow
  • Lay Length 6" nom.
  • Shielding N/A
  • Rip Cord Yes
  • Jacket PVC (0.045 " nom.)
  • Overall Diameter 0.295" nom.
  • Operating Voltage 300 Volts max.
  • DC Resistance 6.66 Ohms/1000' at 20°C
  • Capacitance 14.2 pF/ft. nom.
  • Impedance 107 Ohms nom.
  • Temperature -20°C to 75°C
  • Flame Rating UL Vertical Tray
  • RoHS Compliant Yes
