PLATINUM TOOLS TP150 TONE & PROBE SET

PN / PLA-TP150 *

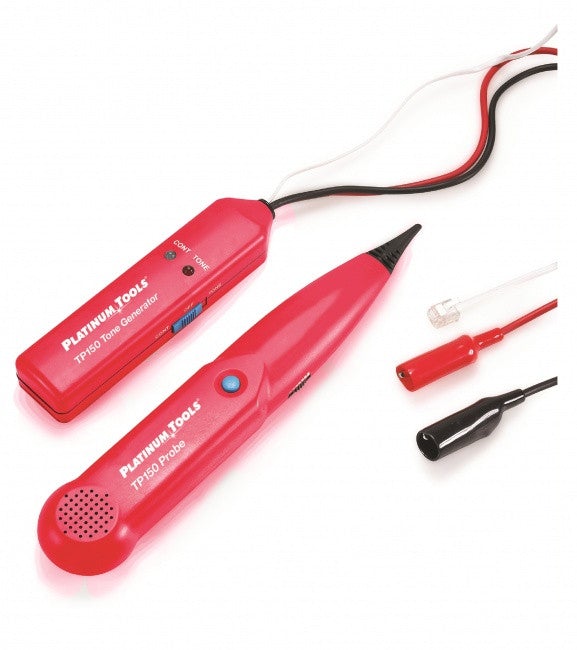

Platinum Tools TP150 Tone and Probe Set

Make cable tracing easy with Platinum Tools' Tone and Probe Set. With its steady tone, push-to-scan button and a clear loudspeaker, quickly trace and identify cable locations on jacks or through walls. Wire bundles are easily penetrated with the tapered probe tip and the probe volume is controlled with a thumbwheel. With common send and receive frequencies, the TP150 is versatile enough to be used with other tone generators or probes.

Probe Features

• Recessed push-button activates tone scanning when needed
• Tapered tip allows easy penetration of cable bundles
• Side thumb wheel adjusts volume and turns off
• power to reserve battery power
• Probe Sensitivity: 100Hz~300KHz

Tone Generator Features

• Slide switch to select TONE/OFF/CONT
• Continuity mode to verify if a wire is broken
• Alligator clips to test pairs and an RJ11 connector for data or phone lines
• Tone Generator Output: 1.5KHz square wave form cable
