PN:SUP-CSR-4DR-R2*
BIOMETRIC ACCESS CONTROLLER WITH 4 FINGERPRINT SLAVE READERS
CS-40 BIOMETRIC ACCESS CONTROLLER
- Centralized, secure storage of biometric and access group data
- No Ethernet connection to the edge devices
- No data stored on the edge devices
- Secure communication via TLS 1.2
- AES-256 encryption
- System Flexibility and Scalability
- OSDP 2.0 compatible
- Elevator control with OM-120
- Supports up to 132 access points with DM-20 and Secure I/O 2 (132 x Wiegand readers/64 x RS-485 readers)
- 3rd party Wiegand reader
- 4ch onboard reader control (Wiegand, RS-485, relays, inputs, outputs, power out, AUX)
- Leverages existing wiring

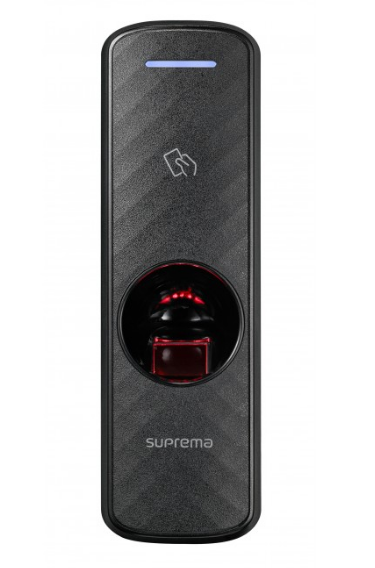

BER2-OD COMPACT FINGERPRINT READER
- Fingerprint
- Optical Sensor (OP6)
- SUPREMA / ISO 19794-2 / ANSI 378
- MINEX certified and compliant
- 1.0 GHz
- 32MB Flash + 32MB RAM
- Multi-Color
- Multi-tone Buzzer
- 1ch Slave, OSDP V2.1.6
- Supported
- DC 12V
- -20°C ~ 50°C
- 0% ~ 80%, non-condensing
- 50 x 164 x 37.5
- 158g
- CE, FCC, KC, RoHS, REACH, WEEE
