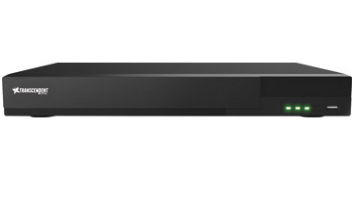

DVR 16CH TRANSCENDENT 4N1 960H

Call 1-800-888-8101 for pricing
Vendor Vitek

PN/ VIT-VT-TTAR1620*

DVR 16 CH TRANSCENDENT 4N1 960H

FEATURES:

  • 16 Channel HD-TVI/AHD/CVI/960H BNC Inputs + IP Camera Support
  • 4-Channel IP Camera Support
  • 480fps @ 720p & 1080P-Lite / 240fps @ 1080p Recording
  • Simple plug and play, point-to-point connection from camera to DVR
  • H.264 Compression
  • HDMI, VGA, and BNC (Spot) Video Outputs
  • 2-Way Audio
  • PTZ Control over RS-485
  • 4 Alarm inputs / 1 Alarm Output
  • Pentaplex: Live Display / Record / Playback / Backup / Remote Access
  • 2 Internal SATA2/SATA3 HDD Slots supporting up to 12TB (2 x 6TB HDD)
  • Applications for iOS & Android
  • Remote Viewing over the Internet via Web Browser or LAN
  • Mac OS® Client & CMS Central Management Software Included
  • Supports both Dynamic and Static IP Addresses
  • Control locally via USB Mouse or IR Remote control
  • 3 Year Warranty

SPECIFICATIONS:

  • Video Inputs1 6 Channels HD-TVI/AHD/CVI/Analog BNC Inputs Supporting up to 1080P
  • IP Camera Support 4 IP Cameras (3 MegaPixel @ 15fps Max per Camera)
  • Compression H.264 High profile
  • Recording (720P) 480fps: 30fps per channel (1280 x 720)
  • Recording (1080P Lite) 480fps: 30fps per channel (960 x 1080)
  • Recording (1080P) 200fps: 12fps per channel (1920 x 1080)
  • Local Playback 16 CH
  • OS Embedded Linux
  • Video Output 1 x HDMI (1080p) / 1 x VGA (1080p) / 1 x BNC Spot (Analog)
  • Multi Operation Pentaplex: Live Display / Record / Playback / Backup / Remote Access
  • Audio Input: RCA x 4 / Output: RCA x 1
  • Two-Way Audio Yes
  • Bit Rate 768Kbps ~ 8Mbps
  • Encode VBR / CBR
  • Quality Levels 6 level
  • Recording Modes Manual, Timer, Motion, Sensor
  • File Management Lock, Unlock, Reserve time, Redundancy
  • Search Time, Motion, Sensor, Single, or Multi-channel
  • Function Play, Pause, FF ,FB, Shutter Control, Jog, Digital zoom
  • Alarm In/Out 4 Alarm inputs / 1 Alarm Output
  • Alarm Modes Sensor, Motion, Video loss
  • Alarm Triggering Record, PTZ move, Relay out, E-mail, etc
  • Network Interface RJ45 x 1
  • Remote Viewing CMS / Web Browser / Mobile Platforms
  • Remote Playback 4CH
  • Dual-stream Individual Network Video Stream and local recording stream, set separately
  • Remote Users 10 users online, dual stream
  • Control Drivers Available for various automation control systems such as Control 4
  • Remote Viewing CMS / Web Browser / Mobile (iOS/Android)
  • RS485 RS485 x1 (for PTZ)
  • PTZ Protocol Pelco D / Pelco P
  • Network Protocols TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS, SMTP, RTSP, HTTP
  • SATA HDD Up to 12TB (2 x 6TB)
  • USB 2 x USB 2.0 for mouse and USB backup devices
  • Accessories Remote controller, SATA cable, USB mouse
  • Power Supply DC: 12V
  • Working Environment 32º~104ºF (0º~40ºC) / 10~90% RH
  • Dimensions (WxHxD)16.93" x 2.17" x 11.81" (430mm × 55mm × 300mm)
