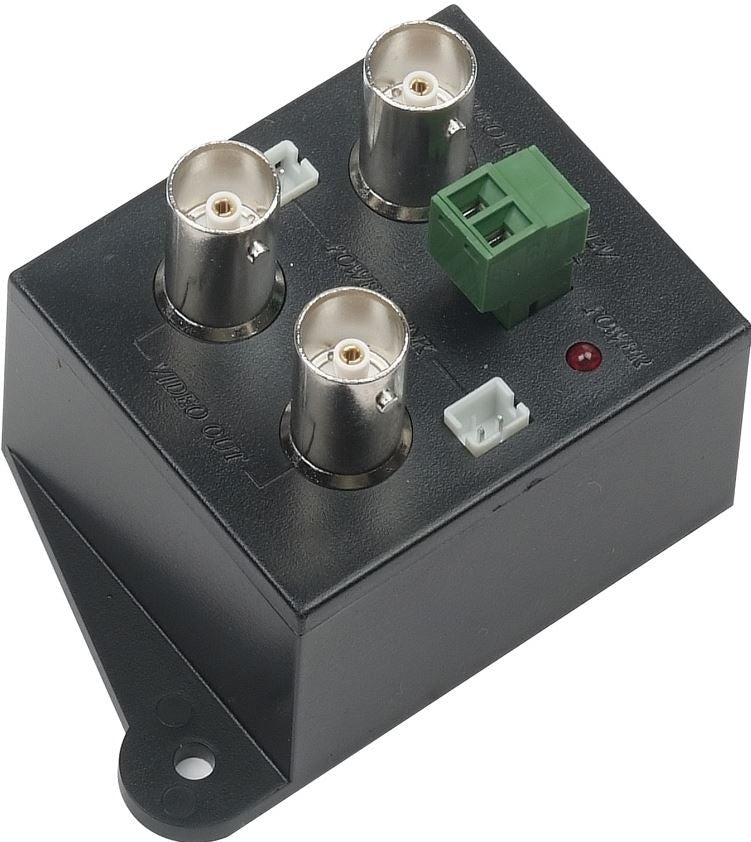

SEESTATION CD102 1 Input 2 Output Video Distributor Amplifier / Splitter

Brand SeeStation

PN / SEE-CD102 *

1 Input to 2 Output Video Distributor Amplifier

Specifications:

CD102 is video distributors with one or multi video input to multi output.  They are suitable for far distance, different floor in a building or different electrical field.

Features:
  • Red LED: power on/off.
  • It can be connected video camera, multiplexer, VCR, DVR…etc.
  • When using multi distributors, a jumper is needed to extend power. ( Max of 8 per power adapter)
  • Package includes a jumper and power adapter.
ITEM NO. CD102
Video Input Channel 1
Video Output Channel 2
Video Input Level 0.8~1.2Vp-p, 75 Ohms
Video Output Level 1Vp-p (Standard), 75 Ohms
Video Bandwidth 10hz - 10MHz
Power Supply DC12V 500mA / AC24V
Power Consumption 40mA
Dimensions   W x H x D mm 42.2x72.7x46
Weight        g 65
Material ABS Black
