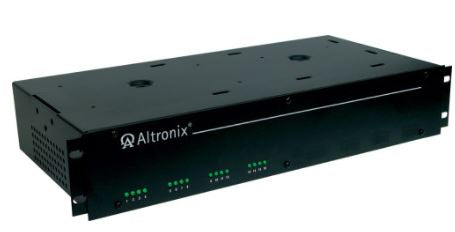

24VAC 25AMP RACK MT CCTV PWR.

Brand ALTRONIX CORPORATION

PN / AX-R2416600UL *

Overview

R2416600UL provides 24VAC or 28VAC distributed via sixteen (16) fuse protected outputs for powering CCTV cameras, heaters and other video accessories.

Specifications

Input:
  • 115VAC, 50/60Hz, 6 amp.
Output:
  • Sixteen (16) fuse protected outputs.
  • 24VAC @ 25 amp (600VA) supply current (0.7812 amp per device, 3.5 amp max.) or 28VAC @ 20 amp (560VA) supply current (0.625 amp per device, 3.5 amp max.).
  • Outputs are rated @ 3.5 amp.
  • Surge suppression.
Electrical:
  • Operating temperature: 0° C to 49° C ambient.
  • 307.09 or 286.62 BTU/Hr.
  • System AC input VA requirement: 690VA.
Features:
  • Sixteen (16) power LEDs.
  • Illuminated master power disconnect circuit breaker with manual reset.
  • 3-wire grounded line cord.
  • Removable terminal blocks with locking screw flange.
  • Spare fuses provided.
  • Lifetime Warranty

Dimensions & Weight

Rack Chassis:
  • Modular 2U standard EIA 19" rack mount chassis.
  • Dimensions 3.25"H x 19.125"W x 8.5"D (83mm H x 486mm W x 216mm D)
  • Allow 1/2U space on top and bottom of the unit for ventilation.
Weights (approximate):
  • Product Weight: 22.7 Lbs (10.296 kg)
  • Shipping Weight: 23.7 Lbs (10.75 kg)
