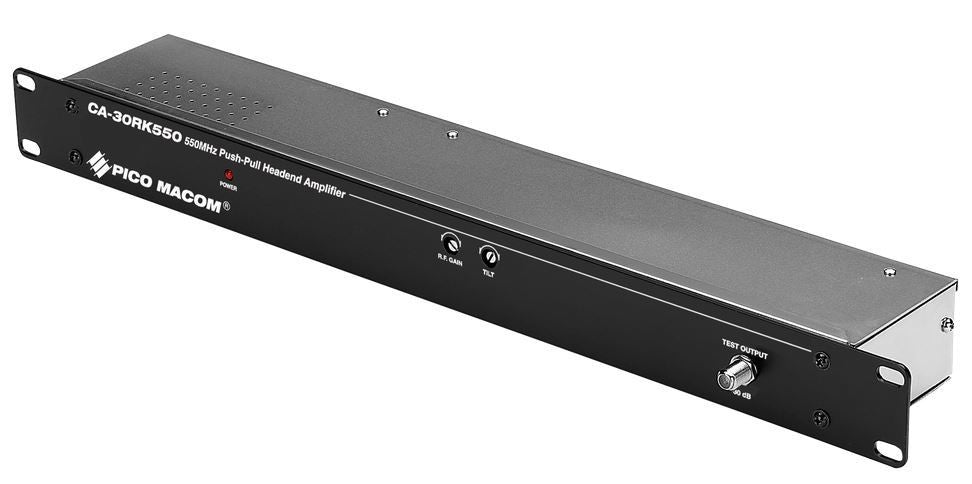

PICO CA-30RK550 50-550MHZ PUSH-PULL HEAD-END AMPLIFIER (RACK MOUNT)
Couldn't load pickup availability
Vendor
PICO DIGITAL, INC.
PN / CA-30RK550 *
ONLY 1 AVAILABLE New if factory packaging
PICO Digital 550MHZ PUSH-PULL HEADEND AMPLIFIER (RACK MOUNT)
- 82 Channel frequency range 54~550MHz (CATV 2~13! A1~A5, A~PPP) (CA-30RK550)
- 30dB Gain for optimal carrier to noise ratio and superior picture quality
- ±0.5dB Flatness across band provides low distortion and excellent frequency response
- Front panel controls and test point enable easy setup and monitoring
- Built-in lightning and line voltage surge protection protects the unit from damage
- Low noise performance, eliminating addition of offending picture static
| Bandwidth (CA-30RK550) | 54~550MHz |
| Gain | 30dB |
| Flatness | 0.5dB |
| Composite second order | 70dB |
| Composite triple beat | 75dB |
| Output test point loss | -30dB |
| Voltage input | 115VAC |
| Power frequency | 60Hz |
| Power required | 4Watt |
| Dimensions | 19” (L) x 3” (D) x 1.75” (H) |
| Weight | 3.8 lbs. |
| Total # of Channels | Input Level (dBmV) | Output Level(dBmV) |
|---|---|---|
| 12 | 19 | 51 |
| 24 | 16 | 48 |
| 36 | 15 | 47 |
| 48 | 13 | 45 |
| 72 | 12 | 44 |
