SeeStation DVR Kit 8 Channel 960H With 8 Each 800TVL BLACK Cameras
Couldn't load pickup availability
PN / SS-S015V08120K-8B *
(Supports Max 3 Tb SATA Port) Hard Drive Not included

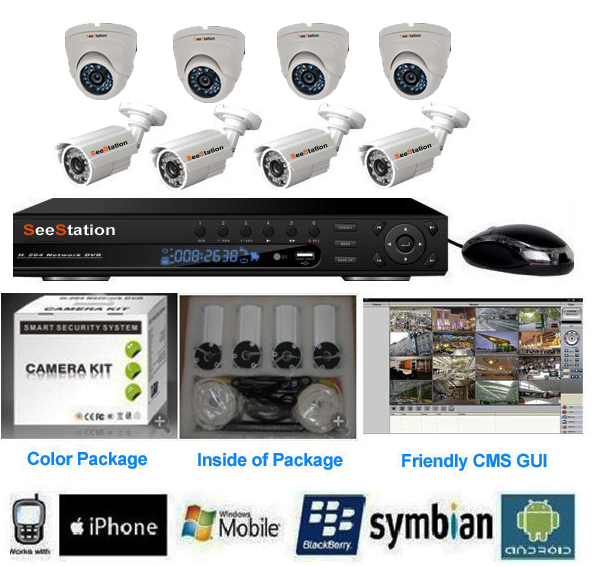

8 Channel Professional Grade DVR KIT with 4 IR Bullet and 4 IR Dome Cameras. Black Metal Housing. Compatible with PC or Apple / MAC operating systems. Remote View on PC or Mobile Phone, Tablet or similar device. This 960H Hi-Resolution system comes with Mouse, IR Remote Control.
Includes:
* 1 PCS, 8CH 960H All Real Time H.264 DVR,
H.264 compression, with HDMI, with RS-485 & OSD menu
Supports DHCP, PPPOE, FTP, DNS, DDNS, NTP,
Supports mobile phone live view
Includes mouse and remote control.
Supports PC & Apple Mac system viewing.
* 4 Each Outdoor Weather Resistant Bullet Cameras
Color 1/3" 960H CMOS DSP
800TVL Bullet Cameras
IR CUT Filter
3.6 fixed lens 0Lux Lens
24Pcs IR LEDs / 20M IR Distance
All oriented bracket,
IP66
DC12V
* 4 Each Outdoor Weather Resistant Dome Cameras
Color 1/3" 960H CMOS DSP
800TVL Bullet Cameras BLACK
IR CUT Filter
3.6 fixed lens 0Lux Lens
24Pcs IR LEDs / 20M IR Distance
All oriented bracket,
IP66
DC12V
* (Supports Max 3 Tb SATA Port) (Not Included)
* 8 20M BNC+DC CCTV Cables
* 1 Power Splitter
* 1 Power Adapter
* 1 IR Remote Controller
* 1 Mouse
* Color Package
* 1 Year Warranty
Feature
· Supports Symbian, Windows Mobile, Iphone
· Supports Android, BlackBerry, realtime recording
· Support Apple Mac system viewing
· With unique flash board showing date, time, etc
· 4CH 960H all real time
· 8CH 960H all real time
· 16CH Full D1 all real time
· With HDMI
· VGA Output at 1920 x 1080
· Support WIFI & 3G
· Support mobile phone live view via 3G net
· With the unique black box technology
· Monitor the whole run process of the equipment
· Greatly reduce the maintenance costs
· H.264 main profile compression algorithm
· Video denoising reduced stream 30% lower relatively
· Mobile’s multi-monitor, also emulational mobile phone
· Support USB2.0
· The User Friendly operation system is similar to WINDOWS
· Powerful mouse’s right button menu function
· Powerful network services
· Support DHCP, PPPOE, FTP, DNS, DDNS, NTP
· EMAIL, IP permissions, IP searches, Alarm Center
· Full Matching (WEB, Client, SDK)
· Easy to achieve interoperability
· Perfect protection circuit, unique triple watchdog
· Low power consumption to assure never out of work
· Multiple language OSD available
· Support PTZ and lens control and alarm
· Support multiple channels playback at the same time
· Support 1 piece of 3,000 GB SATA HDD
· Built in 3322, Oray, dyndns myq-see
· Built in DDNS free domain
| Specification | |||
| Model No. | 16 Channel | 8 Channel | 4 Channel |
| Main Processor | High performance embedded microcontroller | ||
| Operating System | Embedded LINUX | ||
| System Resources | multi-channel real-time recording and playback, multi-channel net operation for several persons, USB backup | ||
| Operation Interface | 16-bit true color graphical menu interface and mouse support | ||
| Menu Display | 1/4/8/9/16 screen | 1/4/8/9 screen | 1/4 screen |
| Video Standards | PAL(625 line, 50 f/s); NTSC (525 line, 60 f/s) | ||
| Surveillance Quality | PAL, 960H /D1(704×576); NTSC, 960H /D1(704×480) | ||
| Playback Quality | PAL, 960H /D1(704×576); NTSC, 960H /D1(704×480) | ||
| Code Ability | 400/480fps | 200/240fps | 100/120fps |
| 16CH D1@25F/S/CH | 8CH D1/960H@25F/S/CH | 4CH 960H@25F/S/CH | |
| Motion Detection | Zones:396(22*18)detection zones, many levels of Sensitivity setting | ||
| Audio Compression | G711A | ||
| Bidirectional Talk | Support | ||
| Recording Mode | Manual>Alarm>Dynamic Detection>Timing | ||
| Playback | 4CH*960H/1CH*D1 | 4CH*D1/2CH*960H | 4CH |
| Search Mode | Time/Date, Alarm, Motion Detection & exact search(accurate to second) | ||
| Space Occupation | Audio: 28.8MB/H Video: 25～450MB/H | ||
| Video Storage | Hard disk, SD card(optional), and net | ||
| Backup Mode | Network burn, mobile Hard disk and USB burn | ||
| Video Input | 16 CH, BNC, 1.0Vp-p,75Ω | 8 CH, BNC, 1.0Vp-p,75Ω | 4CH, BNC, 1.0Vp-p,75Ω |
| Video Output | 1 channel, BNC, 1.0Vp-p,75Ω and 1 VGA output; 1 channel HDMI Output (1920*1080P) | ||
| Audio Input | 8 CH | 4 CH | |
| Audio Output | 1 CH, RCA, 200-3000mV,5KΩ | ||
| Alarm Input | 4 CH | N/A | |
| Alarm Output | 1 CH | N/A | |
| Net Interface | RJ-45 (10M/100M) | ||
| PTZ Control | 1 RS485 | ||
| USB Interface | 2 Ports | ||
| With HDMI | YES | ||
Supports 2 HDD Max 6 TB SATA (Not Included)
