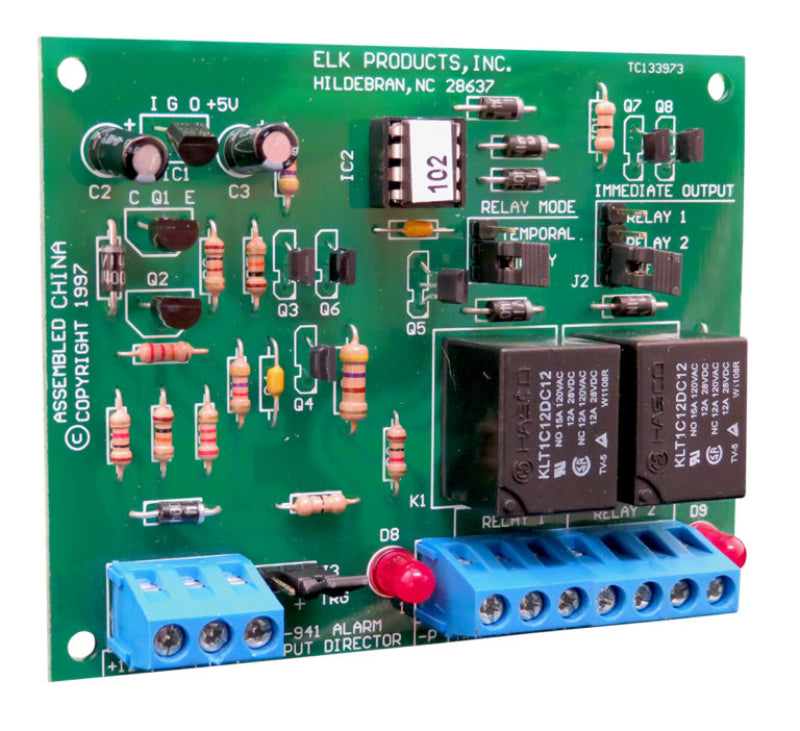

ELK-941 Alarm Output Director
The ELK-941 is a versatile relay module designed to separate steady and pulsing voltage from a single alarm output, directing it into two independent relay outputs. This makes it an excellent solution for controlling two-channel long-range radios, cellular transmitters, sirens, strobe lights, or bells using the alarm outputs commonly found in security control panels.
When a steady voltage input is detected, Relay 1 activates—ideal for burglary alarms. When a pulsing voltage input is detected, Relay 2 activates—typically used for fire alarms. The module includes a 3 to 4-second verification delay before activation to reduce false alarms, with the option to bypass this delay for applications that require immediate response. Additionally, Relay 2 can be configured to pulse in a temporal coded bell pattern that complies with ANSI Standard S3.41 for fire alarm signaling.
Designed for flexibility and reliability, the ELK-941 supports positive or negative low current triggering, features LED status indicators, and provides a low current output for alerting during the delay period. It comes housed in a durable surface-mount ABS enclosure with a snap-on cover, ensuring easy installation and long-lasting performance.
Key Features:
Separates Steady & Pulsing Voltage into Two Relay Outputs
Supports Positive or Negative Low Current Triggering
Two (2) SPDT Relay Outputs for versatile device activation
Ideal for Two-Channel Radio & Cellular Transmitters
Optional Temporal Pulse Output (Relay 2) for Fire Signaling
Low Current Output during the delay period for status indication
LED Relay Status Indicators for quick troubleshooting
Surface Mount ABS Enclosure with Snap-On Cover for easy installation
Meets ANSI S3.41 Audible Emergency Evacuation 3-Pulse Pattern
Lifetime Limited Warranty for long-term reliability
Whether used for security, fire alarm systems, or automation, the ELK-941 Alarm Output Director ensures precise control and dependable performance.
