DIPLEXER (5-2150 MHz) 2 Amp DISH NETWORK APPROVED

$ 2.50
Login to see prices
Vendor ASKA
View details

Call: 800-888-8101

Fill Out Customer Application

PN / ASK-SCS-2A *

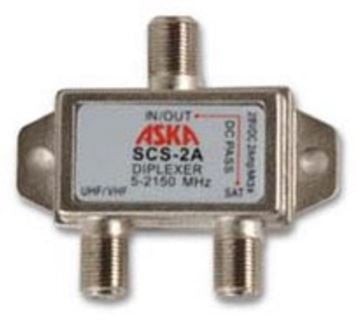

SCS-2A  -  2 Amp High performance Diplexer

DISH NETWORK APPROVED

Low insertion loss, on both U/V and Sat port. Higher Return Loss, High Isolation (stop band rejection).

2 AMP 28VDC current capability on Sat port-power passing. Solder back cover for excellent RFI shielding, Complies with CEA-897 color coding.

Features:
  • Low Insertion Loss, on both ANT and SAT ports
  • Higher Return Loss – 12dB Min. on both ANT & SAT ports
  • Solder back cover for excellent RFI shielding
  • Complies with CEA-897 Port color coding

Specifications:
  • Band width:               ( ANT) 5 - 806MHz   (SAT) 950 - 2200MHz
  • Insertion Loss:            ( ANT) - 2dB Max    (SAT) - 1.5dB Max
  • Stop band Attenuation:    35dB Min
  • DC current capability:    (SAT port only) – 2 Amp 28VDC
  • Return Loss:                 12 dB Min. on both Sat and Ant ports
