PN/ KER-NXT-3R(E)*

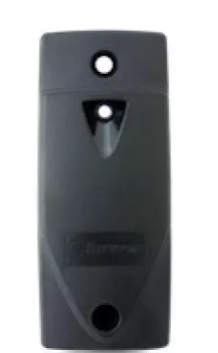

Door Frame Proximity Reader, Exit/Egress Version
FEATURES:
- Sleek Attractive Packages with Ultra Thin Profile
- Supervised by Controller for Immediate Notification of Failure
- Better Read Range Performance than Competing Products of Similar Size
- Encrypted Data Between Reader and Card or Tag
- Reduce Reader Cabling Costs by using Shielded CAT-5
- 1,000’ (300 Meters) Wiring Distance from Controller
- Configurable as “In” or “Out” Readers to double NXT controller capacity
SPECIFICATIONS:
- Size NXT-3R 3.75” H x 1.6” W x 0.625” D (9.5 cm x 4.1 cm x 1.6 cm) NXT-5R 4.18” H x 2.95” W x 0.625” D (10.6 cm x 7.5 cm x 1.6 cm) NXT-1R 3.25” H x 3.25” W x 0.625” D (8.3 cm x 8.3 cm x 1.6 cm)
- Read Range a NXT-3R up to 4 inches (10 cm) NXT-5R up to 6 inches (15.24 cm) NXT-1R up to 5 inches (12.7 cm)
- Weight NXT-3R 2.6 oz. (74 g) NXT-5R 3.5 oz. (99 g) NXT-1R 3.1 oz. (88 g)
- Input Power b NXT-3R 10 -14 VDC @ 85 mA typical NXT-5R 10 -14 VDC @ 85 mA typical NXT-1R 10 -14 VDC @ 85 mA typical
- Operating Temperature -40° F to 149° F (-40° C to 65° C)
- LED Indicator Tri-Color Standard (Red, Green, Amber, Off)
- Audio Tone Standard
- Reader Interface c RS-485, 4 conductor, shielded or CAT-5, shielded
- Color Black
- Warranty Lifetime Warranty against defects in materials and workmanship
