PN / ELK-960 * | Download data sheet

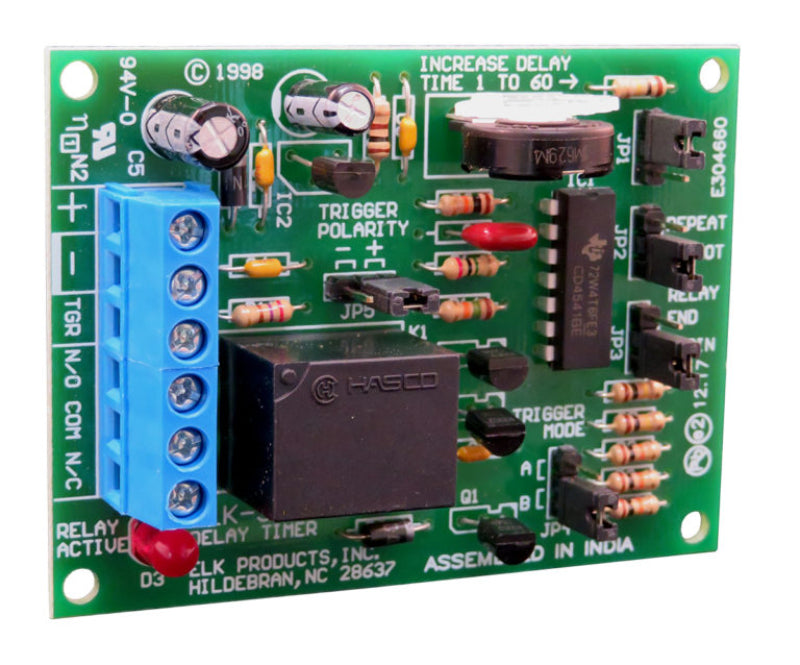

Delay Timer Module

The ELK-960 Delay Timer is a versatile and cost-effective solution for a wide range of general-purpose timer applications. Designed for use in 12 to 24V DC systems, it features a highly adaptable design with selectable positive or negative trigger logic and a low positive trigger voltage threshold of just 4.5V. With easy setup and precise control, the ELK-960 ensures reliability and convenience for any timing needs.

Its adjustable thumbwheel allows quick selection of delay times ranging from 1 to 60 seconds, and a simple jumper setting converts the timing scale to minutes. The module offers flexible operating modes, including one-shot or continuous operation, and the SPDT relay can be configured as normally on or normally off. With its robust design and intuitive LED relay state indicator, the ELK-960 is perfect for a variety of timing and control applications.

Key Features:

• Wide Voltage Compatibility: Operates on 12 to 24V DC systems.
• Adjustable Timer: Thumbwheel adjustment from 1 to 60 seconds, with jumper selection for minutes.
• SPDT Relay: Reliable Form "C" relay for versatile output options.
• Low Trigger Current: Positive trigger with input requirements of less than 1mA.
• Flexible Trigger Logic: Supports both positive and negative triggers.
• Selectable Relay State: Configurable initial state as ON or OFF.
• Multiple Operating Modes: One-shot activation or repeat operation.
• LED Indicator: Provides clear visual status of the relay state.
• Lifetime Limited Warranty: Assurance of long-lasting quality and performance.

Whether you're automating processes, managing delays, or controlling devices, the ELK-960 Delay Timer delivers precise timing with maximum flexibility.

Downloadable Resources

ELK-960 Delay Timer Instructions
