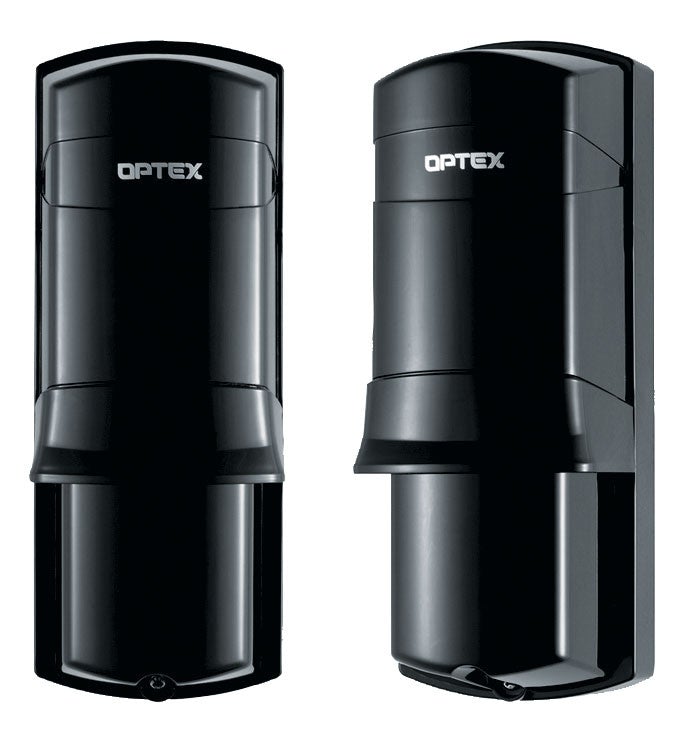

OPTEX AX-200TN 200' Outdoor Dual Beam

$ 181.25
Vendor OPTEX

PN / OPT-AX-200TN *

Description:

The AX-200TN short range photoelectric detector is compact in design with an IP65 highly durable structure and 200ft detection range. Rubber packing is used for all conceivable points where water, dust or bugs may penetrate, such as wiring holes, wire ports and the outer chassis. Preventing these factors helps deliver performance with higher reliability in severe outdoor environmental condition. In addition, the length between the upper and lower optics, and the width of the optics are ideally engineered to produce the most intelligent detection pattern which reduces false alarms by detecting human intruders only.

Features:
  • IP65 structure
  • Lightning and surge protection
  • Anti-frost hood cover
  • 99% beam blocking stability
  • A.G.C circuit
  • Adjustable beam interruption time
Technology:
Active Infrared
Wiring:
Wired
Installation:
Commercial
Residential
Indoor/Outdoor:
Indoor
Outdoor
Product Type:
Detector
Zone:
Perimeter
Interior
Coverage:

200' Outdoor

Dimensions:

6.7" x 2.6" x 2.7"
