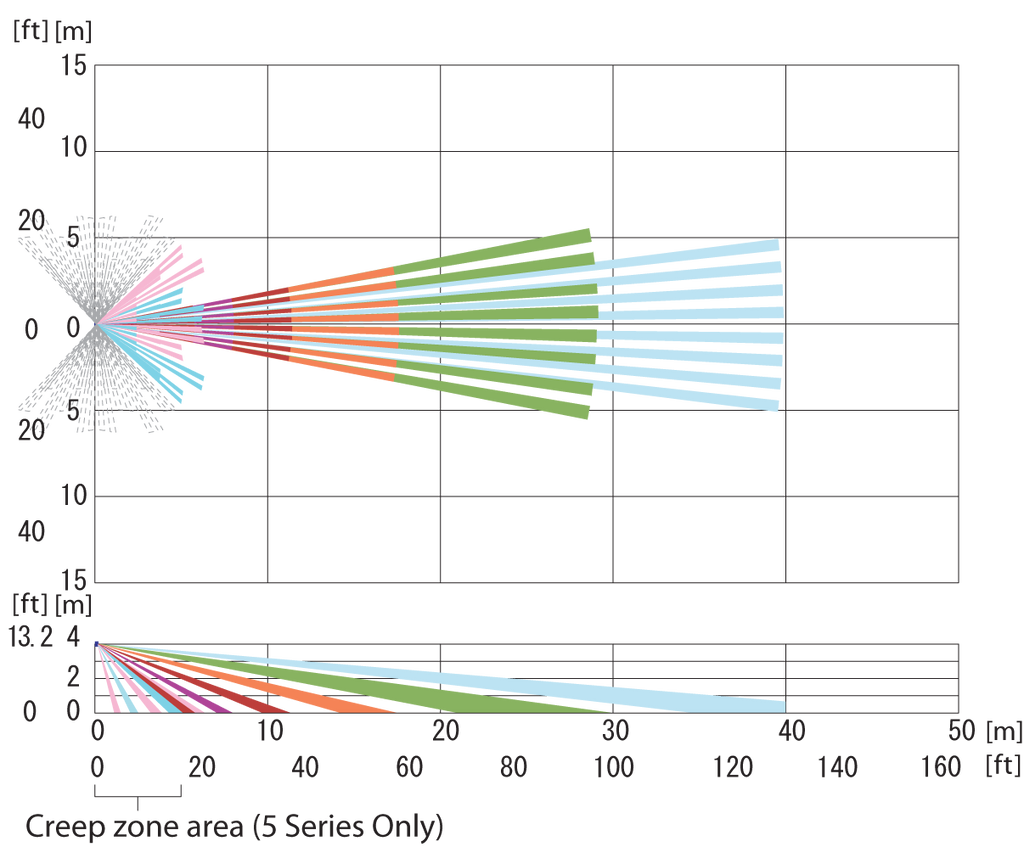

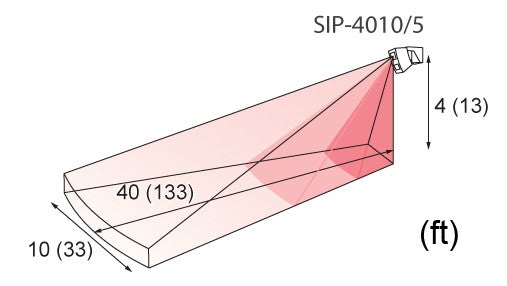

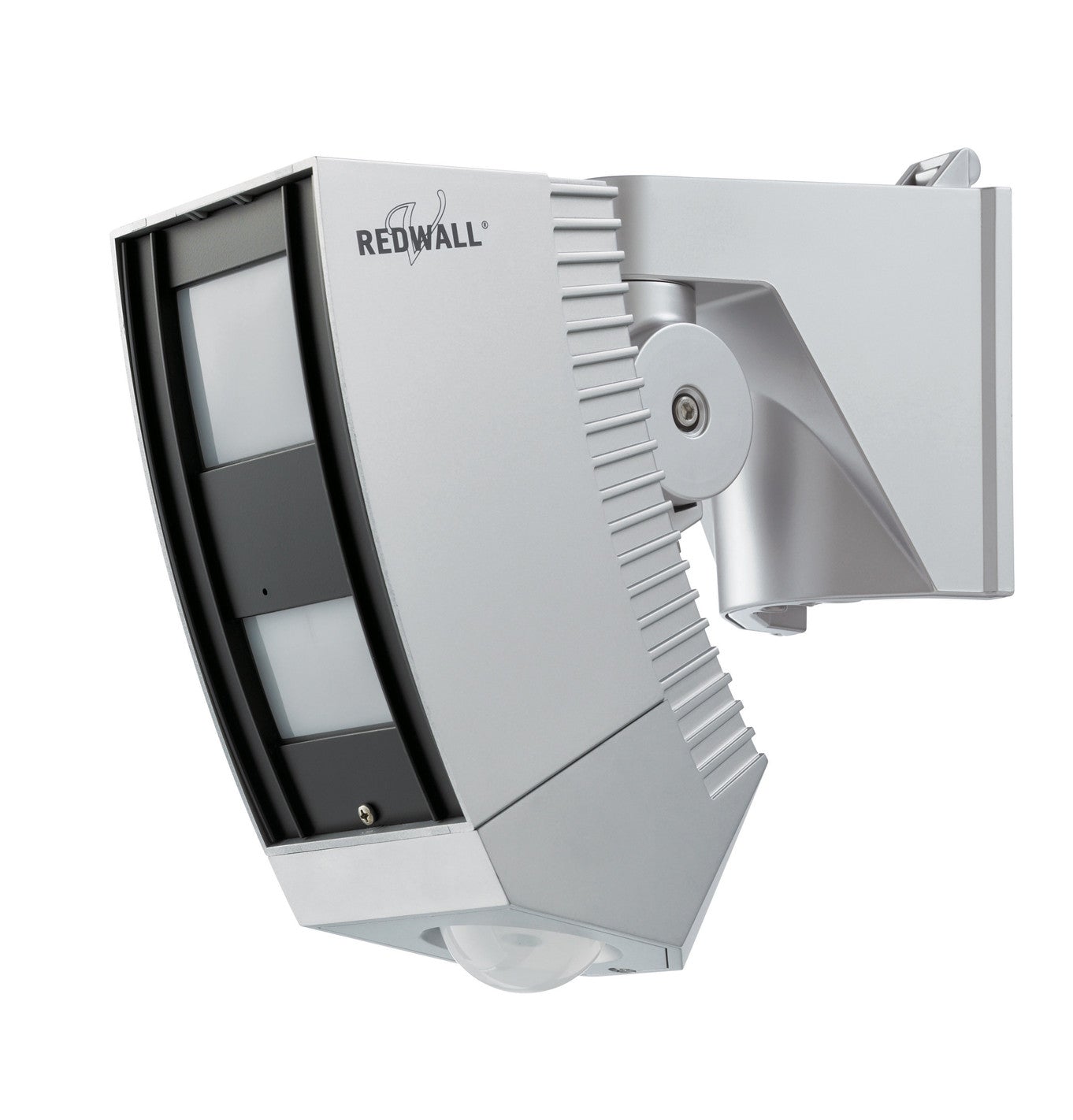

OPTEX SIP-4010/5 130' x 33' Superior Intelligent PIR detector with Anti-Masking and Rotation and adjustable creep zone
Couldn't load pickup availability
PN / OPT-SIP-4010/5 *
**AVF-1 & AWT-3 Required for Proper Installation**
The SIP-4010/5 is designed for mid-range outdoor detection applications to trigger video transmission systems and PTZ camera control.The detector has an intelligent detection system that uses data from the ambient environment, such as temperature and illuminance conditions, to automatically adjust the sensitivity. It is also equipped with anti-rotation and anti-masking functions, which can detect vandalism or tampering with the unit. The SIP-4010/5 has an additional PIR detector on the bottom to cover the area just below the unit. The PIR detector on the bottom has an independent output separate from the main detector, while the detection angle in the main area of the SIP-410/5 can be adjusted to easily match a camera's field of view.
- Intelligent PIR detection system
- Built-in creep zone detector (Double dual pyro-elements)
- Automatic sensitivity management to ambient temperature and light
- Advanced detection algorithm
- Three dual pyro-elements with patented Double Conductive Shielding
- Anti-vandalism functions including anti-masking and anti-rotation function with 3-axis accelerometer
- 7.6ft. to 13ft. mounting height
- Independant sensitivity for near and far detection zones
- Detection logic selector
- Independant N.C. and N.O. outputs
- Adjustable alarm interval time
130' x 33' Superior Intelligent PIR detector with Anti-Masking and Rotation and adjustable creep zone
