PN/ TDG310K1C  * | Download data sheet

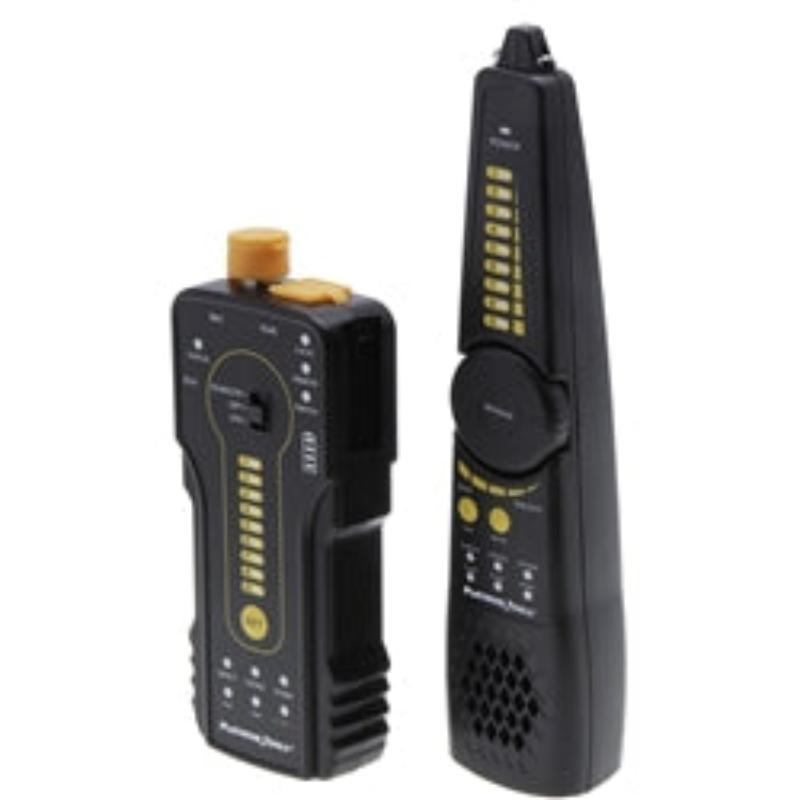

Platinum Tools Digital Tone and Probe Kit

The Platinum Tools TDG310K1C Digital Tone and Probe Kit is an advanced and versatile toolset designed for efficiently tracing and locating cables in both unpowered and live circuits. Whether working with phone lines, network cables, or coaxial cables, this kit enables technicians to quickly identify and troubleshoot wiring issues. With its built-in testing functions, the TDG310K1C allows users to verify proper network cable terminations and detect shorts in single-ended test mode.

Key Features:

• Cable Tracing and Locating: Effectively traces and locates cables in unpowered or live circuits, ensuring seamless identification of individual or bundled cables.
• Signal Indicators: Audible and visual indicators provide real-time feedback on signal strength, making cable tracing easier and more precise.

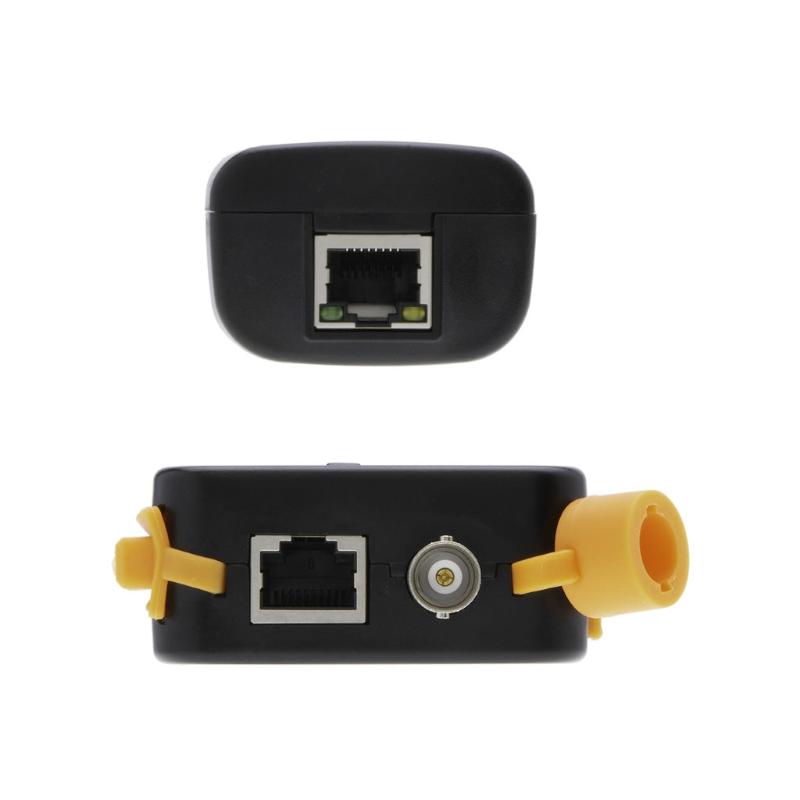

• Built-in RJ45 Testing: Verifies network cable terminations with LED wire map, identifying straight/crossed cables, shielded cable continuity, and shielding issues.
• PoE Testing: Tests Power over Ethernet (PoE) ports for power supply status and port speed configuration, ensuring proper network power management.
• Phone Line Testing: Checks the status of analog phone lines to identify connectivity issues.
• High-Intensity Flashlight: Built-in flashlight offers additional illumination for working in dark or low-light environments.
• Silent Mode: Switch to silent mode by pressing the “Mute” key to find cables using the LED strength indicators without sound interference.
• External Audio Support: Includes a mono earphone jack for external audio output, enhancing flexibility during testing.

Specifications:

• Tone Generation: Digital signal technology that rejects noise and false signals for precise cable identification.
• Supported Cable Types: Works with RJ45 twisted pair cables, RJ11 telephone lines, BNC cables, and more.
• UTP Cable Testing: Tests for LED wire maps, continuity, and checks cable types (straight, cross, etc.) and network speeds (100M/1000M). Also supports continuity testing for short circuits.
• PoE Power Test: Tests the PoE switch for power status and checks the power supply pins.
• Operating Voltage: Supports up to 60VDC between pins, allowing safe testing of a variety of live circuits.
• Temperature Range: Operates in temperatures from -10°C to +50°C, making it suitable for a wide range of environments.
• External Power Supply: Powered by four AA batteries for portable operation.
• Audio Output: Supports external audio output via a mono earphone jack.
• Dimensions:
  • Tone Generator: 152mm x 62mm x 27mm (6.0” x 2.4” x 1.1”)
  • Probe: 218mm x 48mm x 32mm (8.6” x 1.9” x 1.3”)

With the TDG310K1C Digital Tone and Probe Kit, technicians can ensure accurate cable testing, efficient troubleshooting, and seamless verification of network and phone line terminations in a variety of applications.
