UNIVIEW EK-S31P4D44T1-V2: 4-Channel Surveillance Kit w/ 4x 4MP IR Dome Cameras

Call: 800-888-8101

Fill Out Customer Application

PN / UNV-EK-S31P4D44T1-V2 * | Download data sheet

4-Channel Surveillance Kit w/ 4x 4MP IR Dome Cameras

The Uniview EK-S31P4D44T1-V2 Surveillance Kit has everything you need to put a high-quality surveillance system in to your home or business. This system incorporates 4MP Uniview IR dome cameras to give you a great image.

Completely Plug and Play

Simply run the included ethernet cable where you want the cameras located, plug everything in, and the network video recorder (NVR) will automatically detect and configure the cameras.

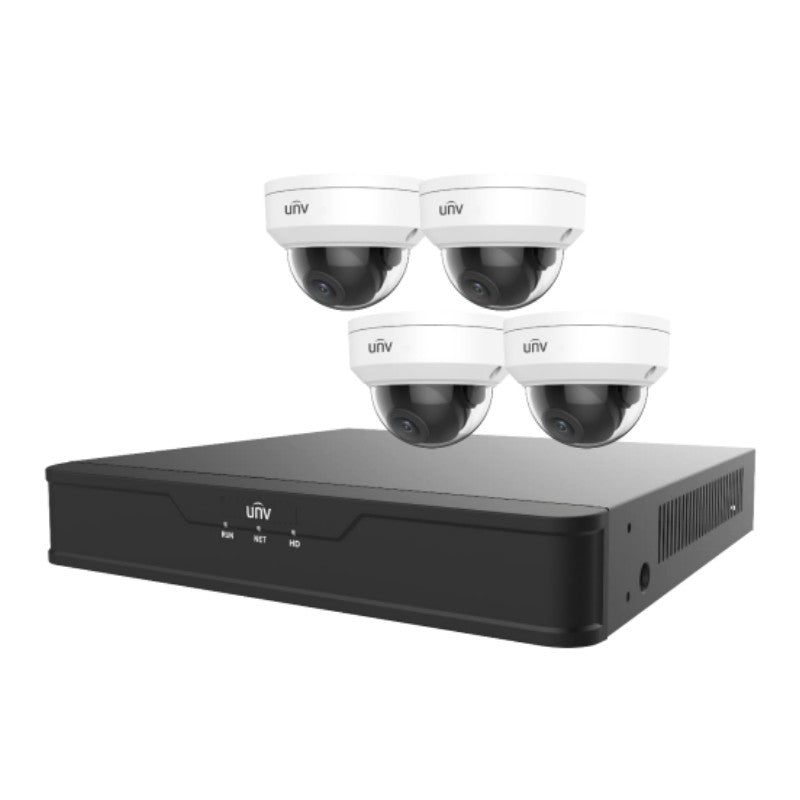

The Uniview EK-S31P4D44T1-V2 Surveillance Kit comes with:

• 4 x 4MP vandal-resistant dome cameras 2.8mm fixed lens (EC-D4F28M)
• 1 x 4-channel 4K network video recorder (NVR301-04S3-P4)
• 1 x pre-installed 1TB hard drive
• Ethernet cable
• HDMI cable


Smart Analytics & Intrusion Detection

The Uniview EK-S31P4D44T1-V2 Surveillance Kit supports intrusion detection, cross line detection, enter an area detection, leave an area detection, audio detection, and ultra motion detection.

Ultra Motion Detection (UMD)

Conventional motion detection analyzes the differences between adjacent video frames to detect if there is any change. There is a challenge with this type of detection, however. When you don't have control over the environment, it is difficult to prevent unintended alarms. In other words, you end up with a lot of false alarms which is counterproductive since the objective is effective surveillance.

Ultra motion detection (UMD) is like conventional motion detection on steroids—it's more accurate and efficient than traditional motion detection. Ultra motion detection supports the targeting of three different object types: motor vehicle(s), non-motor vehicle(s), and human(s) / pedestrian(s). UMD filters objects based on motion detection, detects the motion of very specific object types, and triggers an alarm when the motion of those object(s) are detected.

Weatherproof Cameras

Equipped with 4x network dome cameras, each designed to withstand various weather conditions (IP67 weatherproof rating).

High-Resolution Surveillance

Enjoy clear, detailed footage with up to 4MP (3840x2160) resolution and up to 100 feet of night vision. The cameras come with a 2.8mm wide-angle lens for maximum coverage.

Remote Viewing App

Monitor your property from anywhere using the free Uniview EZVIEW remote viewing app.

Reliable Support and Warranty

Benefit from free lifetime technical support and a 3-year warranty, ensuring long-term reliability and peace of mind.

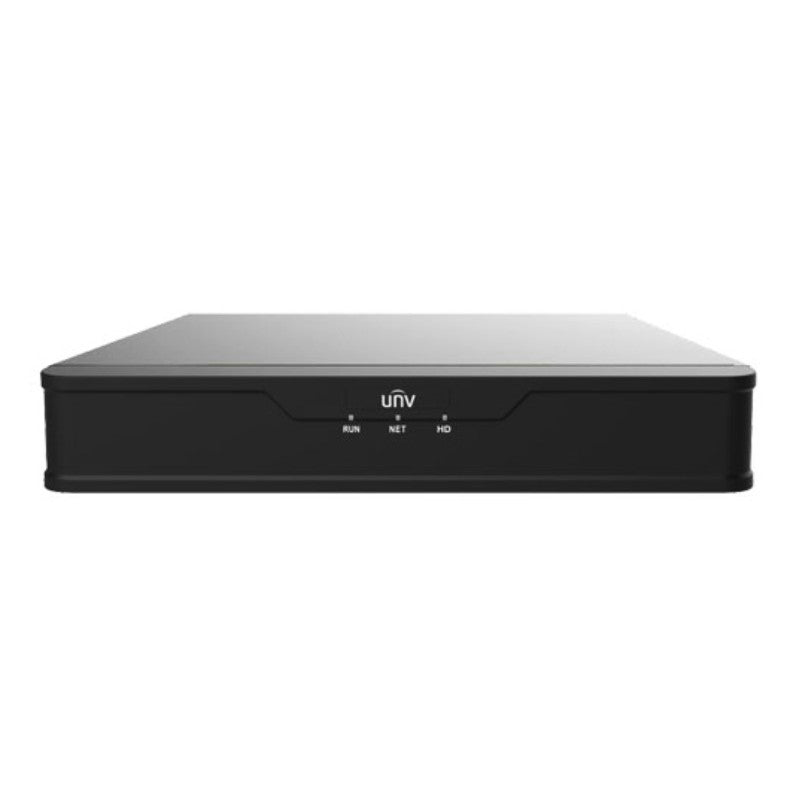

Uniview NVR301-04S3-P4 Network Video Recorder Features

• Support Ultra 265/H.265/H.264 video formats
• 4-channel input
• Plug-and-play with 4 independent PoE network interfaces
• Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T) and RTSP protocols
• Supports 1-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840x2160) resolution
• HDMI and VGA simultaneous output
• Up to 4K resolution recording
• 1 SATA HDD, up to 8TB
• Supports cloud upgrade

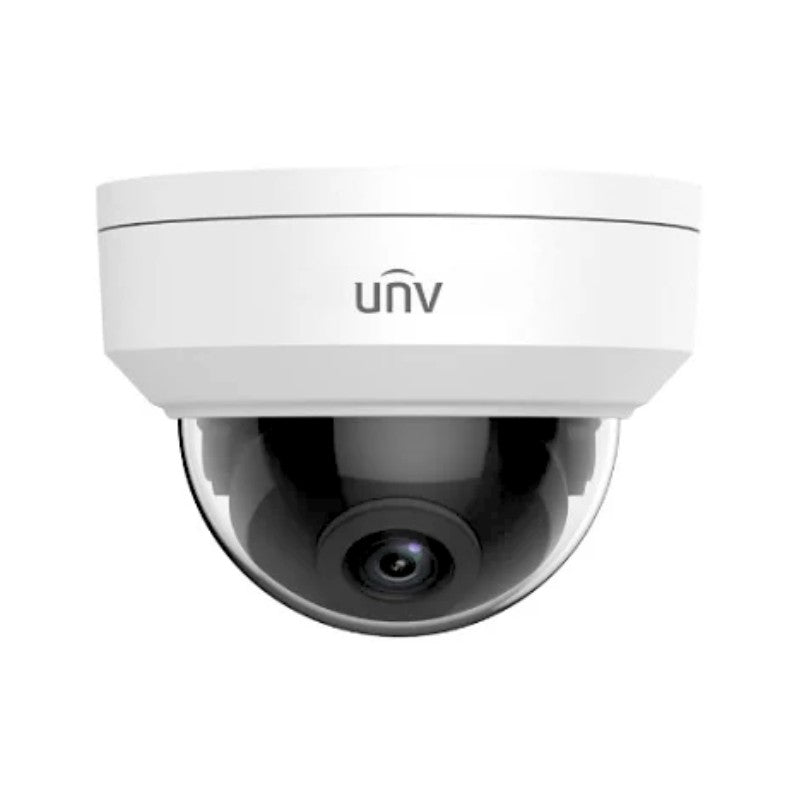

Uniview EC-D4F28M 4MP IR Dome Camera(s) Features

• 2.8mm lens delivers a wide angle of view for maximum coverage
• High quality image with 1/3"CMOS sensor
• 4MP (2560x1440) @25/20fps
• Night vision functionality up to 30 m (98 ft)
• 2D/3D DNR (Digital Noise Reduction)
• Ultra 265, H.265, H.264, MJPEG
• ROI (Region of Interest)
• ONVIF Conformance
• Wide temperature range: -22°F ~ 140°F
• Wide voltage range of ±25%
• IP67 weatherproof

Download Product Resources

Download the Uniview EC-D4F28M dome camera data sheet.

Download Uniview’s network video recorder quick guide.

Download Uniview’s network video recorder user manual.
