UNIVIEW EK-S31P8D46T2-V2 : 8-Channel Surveillance Kit w/ 6x 4MP IR Dome Cameras

Call: 800-888-8101

Fill Out Customer Application

PN / UNV-EK-S31P8D46T2-V2 * | Download data sheet

Uniview 8-Channel Surveillance Kit

Experience unparalleled security surveillance with the Uniview EK-S31P8D46T2-V2 Surveillance Kit, an all-inclusive solution designed to protect your property with cutting-edge features. This 8-channel network video recorder (NVR) is equipped to handle multiple camera feeds simultaneously, and its plug-and-play functionality, along with 4/8 independent Power over Ethernet (PoE) network interfaces, makes installation straightforward.

The kit is compatible with a variety of mainstream cameras that adhere to ONVIF standards (Profile S, Profile G, Profile T) and RTSP protocols, this kit ensures seamless integration with numerous surveillance devices. Experience sharp, detailed monitoring with up to 4K (3840x2160) resolution on HDMI output, which can be used simultaneously with VGA output. With 4K resolution recording and a 2TB storage capacity, your footage is both securely stored and easily accessible. Keep your system current with cloud upgrades and maintain compliance with Section 889 of the NDAA. Enhance your security setup with the Uniview EK-S31P8D46T2-V2 Surveillance Kit—your reliable choice for superior surveillance.

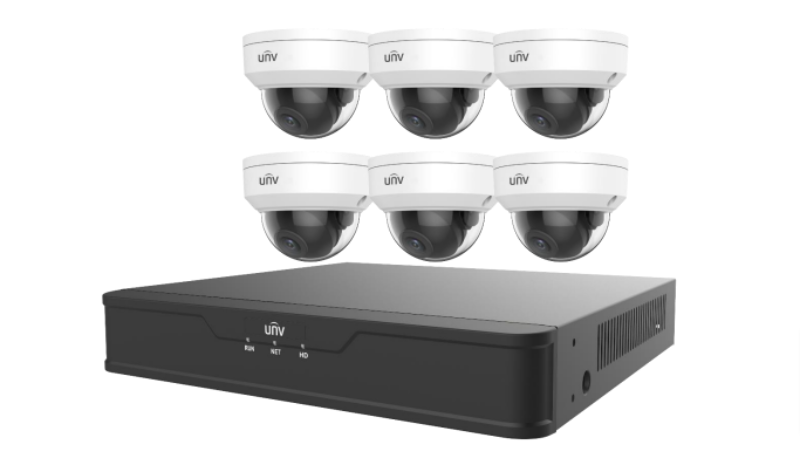

Kit Includes

• 6 x 4MP vandal dome with a 2.8mm fixed lens (EC-D4F28M)
• 1 x 8-Channel 4K NVR (NVR301-08S3-P8)
• 1 x pre-installed 2TB hard drive
• 1 x 6' pre-made Ethernet cable
• 1 x 6' HDMI cable

NVR301-08S3-P8 Network Video Recorder

• Supports Ultra 265, H.265, and H.264 video formats
• 8-channel input capability
• Plug & Play with 8 independent PoE network interfaces
• Compatible with ONVIF conformant cameras (Profile S, Profile G, Profile T) and RTSP protocols
• Features 1 HDMI and 1 VGA output, with HDMI supporting up to 4K (3840x2160) resolution
• Simultaneous HDMI and VGA output
• Up to 4K resolution recording
• Supports 1 SATA HDD, expandable up to 8TB
• Cloud upgrade capability

EC-D4F28M Dome Cameras

• Day/night functionality
• Smart IR with a range of up to 30 meters (98 feet)
• 2D/3D Digital Noise Reduction (DNR)
• Supports Ultra 265, H.265, H.264, and MJPEG formats
• Region of Interest (ROI) support
• ONVIF conformant
• Operates within a wide temperature range: -22°F to 140°F
• Wide voltage range of ±25%
• IK10 vandal-resistant rating
• IP67 weatherproof rating

Download Product Resources

Download Uniview’s network video recorder quick guide.

Download Uniview’s network video recorder user manual.
