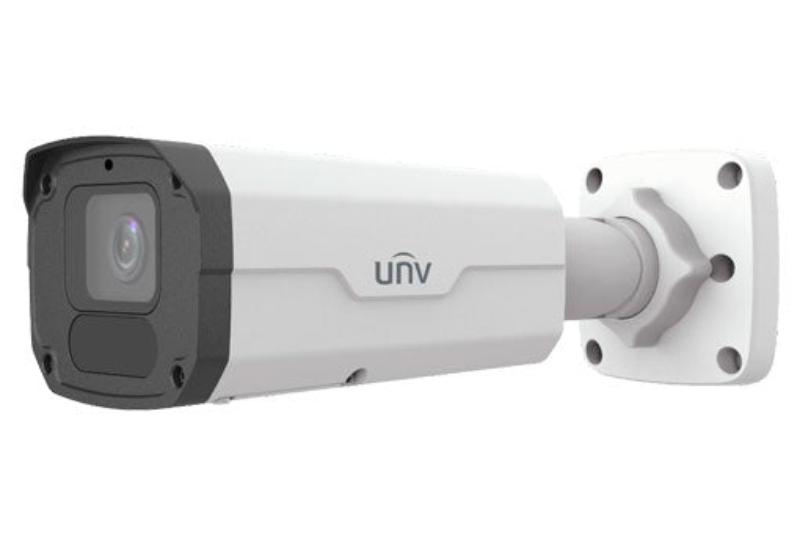

UNIVIEW IPC2225SB-ADF28KM-I1: 5MP LightHunter Big Bullet Camera

Call: 800-888-8101

Fill Out Customer Application

PN / UNV-IPC2B22SS-ADZK-I1 * | Download data sheet

5MP WDR LightHunter IR Network Bullet Camera

The Uniview IPC2225SB-ADF28KM-I1 is a high-performance 5MP network bullet camera designed to deliver exceptional image quality and advanced features for enhanced security monitoring.

Uniview’s LightHunter Technology

LightHunter technology is an innovative technology that delivers vivid color, appropriate brightness, and extremely clear images in ultra-low light. LightHunter technology significantly improves the image brightness with F1.6 large iris design & BSI sensor. With the specially designed large size sensors, the IPCs have higher photosensitivity, and feature high SNR. Uniview's uniquely patented technology U-ISP improves the definition and brightness of images. U-ISP features a new generation of noise reduction technology to improve signal to noise ratio and reduce blur. It effectively reduces blur during objects moving, which ensures that the image is restored to the true scene. Combining hardware and software advantages, Uniview's LightHunter technology guarantees the image full of color under ultra-low light environments.

Smart Intrusion Prevention (SIP)

Uniview's smart intrusion prevention (SIP) technology is designed to improve perimeter protection and achieve efficient management of a surveillance system. It allows end users to monitor key areas in real time, and liberate security personnel from the tedious and constant inspection of monitored areas. Through target classification, users can focus only on the targets they care about instead of wading through a mountain of false alarms. This enables users to retrieve the information from the NVR quickly and accurately.

• Reduce the number of false alarms to less than 3%.
• Through target classification, focus only on the targets and events you care about.

Locate information quickly and accurately by channel, time, and target type (object).

Key Features:

• 5MP High-Quality Imaging: Equipped with a 1/2.7" CMOS sensor for sharp, detailed images.
• 2880x1620 Resolution at 30fps: Provides clear and smooth video in the main stream.
• Versatile Video Compression: Supports Ultra 265, H.265, H.264, and MJPEG for efficient data management.
• Smart Intrusion Prevention: Features Cross Line and Intrusion detection based on human body and vehicle movement.
• LightHunter Technology: Ensures superior image quality even in low-light conditions.
• 9:16 Corridor Mode: Ideal for monitoring narrow or vertical areas.
• Up to 120 dB Optical WDR (Wide Dynamic Range): Captures clear images in high-contrast lighting conditions.
• Smart IR with 80m Range: Provides effective night-time surveillance with built-in infrared illumination.
• Flexible Power Options: Supports DC12V or PoE (IEEE 802.3af) for easy installation.
• Audio and Alarm Support: Includes 1 audio input and output, plus 1 alarm input and output.
• Built-in Microphone: Captures audio for comprehensive monitoring.
• Durable Construction: IP67 weatherproof and IK10 impact-resistant for reliable performance in various environments.

The IPC2225SB-ADF28(40)(60)KM-I1 is a robust and feature-rich camera, designed to meet the demands of high-quality surveillance in diverse settings.
