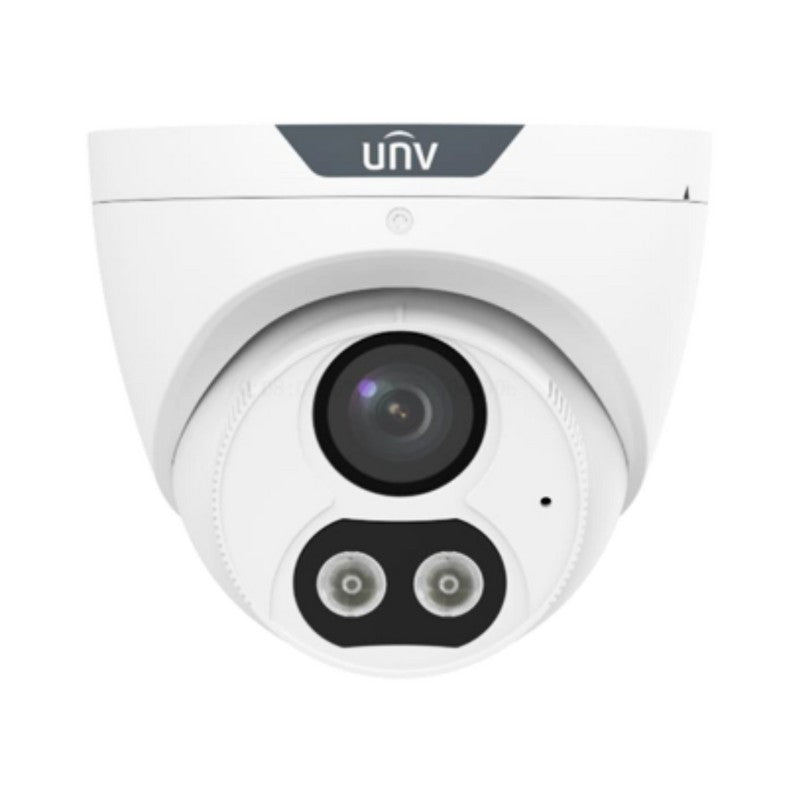

UNIVIEW IPC3614SR-ADF28KMC-DL-H: ColorHunter 4MP IR Fixed Eyeball Turret Camera

Call: 800-888-8101

Fill Out Customer Application

PN / UNV-IPC3614SR-ADF28KMC-DL-H * | Download data sheet

4MP IR Fixed Eyeball Turret Camera

The Uniview IPC3614SR-ADF28KMC-DL-H is a feature-packed 4MP IR Fixed Eyeball Turret Camera, designed to provide high-performance surveillance with advanced technology. Ideal for both indoor and outdoor security applications, this camera delivers exceptional image quality, durability, and intelligent functionality.

• High-Resolution Imaging: Equipped with a 4MP 1/3" CMOS sensor, it supports resolutions up to 2688 x 1520 @ 30fps for detailed, crystal-clear video.
• Advanced Compression: Supports Ultra 265, H.265, H.264, and MJPEG, optimizing storage and bandwidth usage without compromising video quality.
• 120dB True WDR: Wide dynamic range technology ensures clear images in challenging lighting conditions with high contrast.
• Smart IR Night Vision: White light provides up to 30m (98ft) of effective night vision.
• Built-In Audio: Includes a microphone for synchronized video and audio recording.
• Flexible Viewing: Features 9:16 corridor mode for vertical viewing in narrow spaces.
• Ample Storage: Supports MicroSD cards up to 512GB for local storage.
• Rugged Design: IP67-rated weatherproof housing ensures reliability in harsh environmental conditions.
• PoE Power Supply: Simplifies installation with Power over Ethernet support, reducing the need for additional power cables.
• Smart Detection: Cross line detection, intrusion detection (based on human body detection), motion detection ultra motion detection, tampering alarm, and audio detection.

Uniview’s ColorHunter Technology

Uniview's ColorHunter equipped cameras utilize a mixture of hardware and software upgrades to make low-light recording significantly brighter and clearer—exposing dark, fuzzy portions of the image that would be missed with lower-quality cameras. They achieve this by using a large aperture, high light transmittance glass lens, and a back-illuminated large CMOS Sensor coupled with their proprietary U-ISP technology to provide improved noise reduction and reduce motion blur.

Ultra Motion Detection (UMD) #1

Conventional motion detection analyzes the differences between adjacent video frames to detect if there is any change. There is a challenge with this type of detection, however. When you don't have control over the environment, it is difficult to prevent unintended alarms. In other words, you end up with a lot of false alarms which is counterproductive since the objective is effective surveillance.

Ultra motion detection (UMD) is like conventional motion detection on steroids—it's more accurate and efficient than traditional motion detection. Ultra motion detection supports the targeting of three different object types: motor vehicle(s), non-motor vehicle(s), and human(s) / pedestrian(s). UMD filters objects based on motion detection, detects the motion of very specific object types, and triggers an alarm when the motion of those object(s) are detected.

The Uniview IPC3614SR-ADF28KMC-DL-H camera combines cutting-edge technology, intelligent features, and robust design, making it an excellent choice for various security applications, from homes to businesses.
