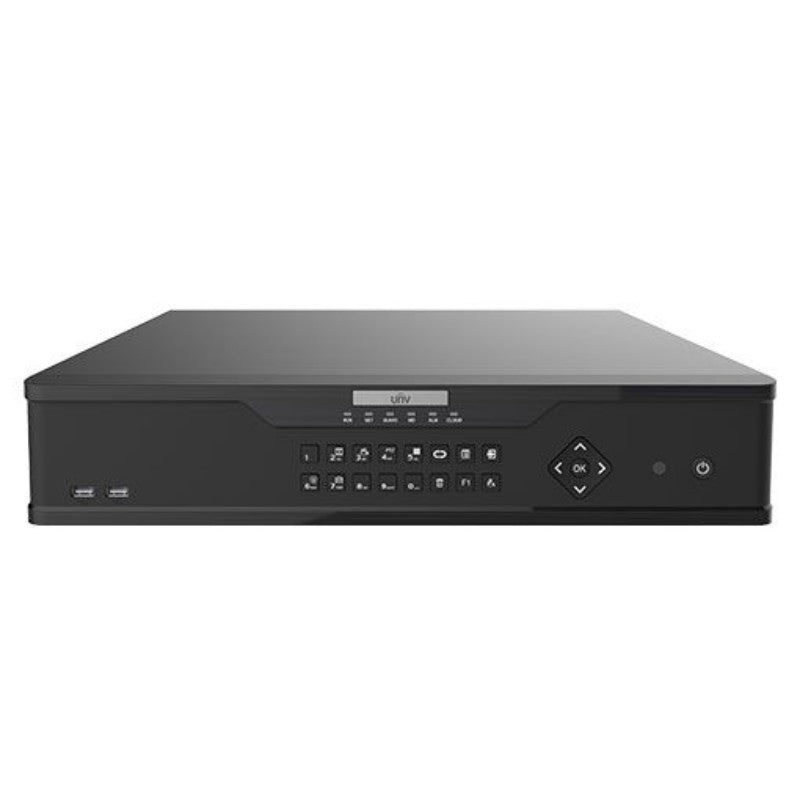

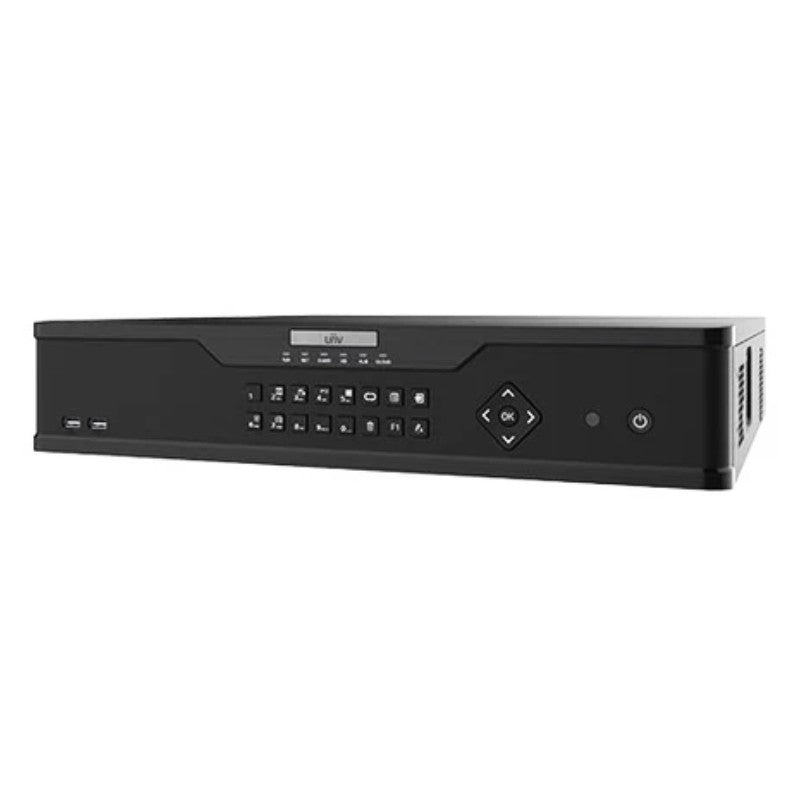

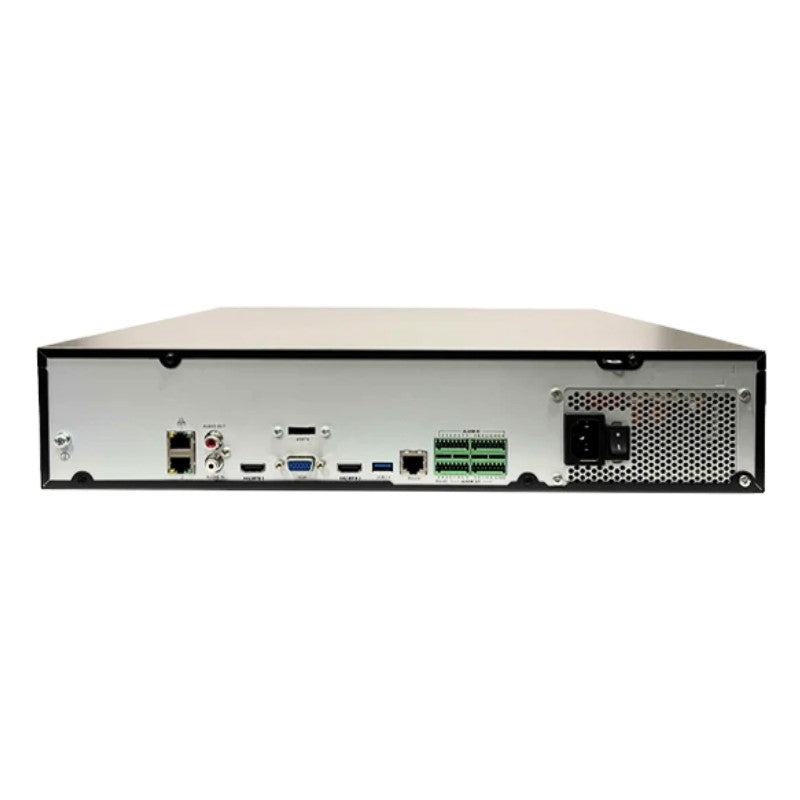

UNIVIEW NVR304-16X: 12MP 16-Channel Network Video Recorder (NVR)
Couldn't load pickup availability
Vendor UniView
Call: 800-888-8101
Fill Out Customer Application
PN / UNV-NVR304-16X * ∣ Download data sheet
12MP 32-Channel Network Video Recorder
The NVR304-32X 12MP 16-Channel Network Video Recorder (NVR) from Uniview features 16x IP network video inputs and records up to 12MP resolution. It offers four SATA interfaces each supporting up to a 10TB HDD, sold separately, and also has an eSATA port. Other features include Ultra 265, H.265, and H.264 formats, support for 128 remote users, two-way audio, HDMI and VGA independent outputs, RAID 1/5 support, and ONVIF compliance.
Hard Drive(s) Sold Separately
This network video recorder does not come with a hard drive. Hard drives are sold separately here.
![Uniview XVR One-Click Cloud Upgrade](https://cdn.shopify.com/s/files/1/0478/8893/files/One-Click-Cloud-Upgrade.png?v=1722001871)
![](https://cdn.shopify.com/s/files/1/0478/8893/files/ucode-h265.png?v=1719855077)
Key Features
- Supports Ultra 265/H.265/H.264 video formats
- 16-channel input
- Supports mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
- Supports 2-channel HDMI, 1-ch VGA. HDMI1 and HDMI2 up to 4K (3840 x 2160) resolution
- HDMI1, HDMI2, VGA independent outputs provided
- Up to 12MP resolution recording
- Supports RAID 1, 5
- 4 SATA HDDs, Up to 10TB for each HDD
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- ANR technology to enhance the storage reliability when the network is disconnected
- Supports cloud upgrade
Download Product Resources
Download Uniview’s network video recorder quick guide.
Download Uniview’s network video recorder user manual.
