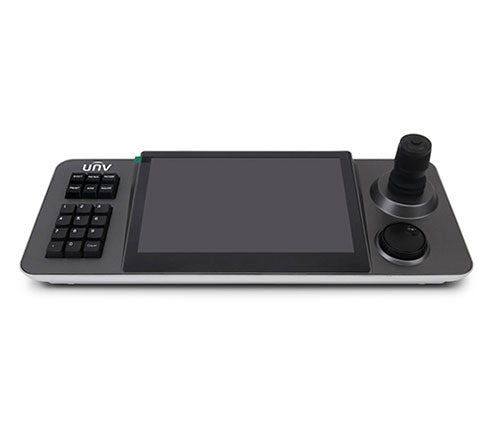

PN / UNV-UV-KB2100*
Network Control Keyboard
Specifications
Function | Parameter |
General | |
Screen size | 10.2 inches |
Decoding format | H.264/H.265 |
Decoding capability | 1*4K@25fps/4*1080@30fps/8*720P@30fps |
Split screen | 1/4/9 (supports simultaneous display of up to 8 channels) |
Signal output | |
HDMI output resolution | 1920x1080@60Hz |
Interface | |
Serial port | 1 * RS232 (DB9, reserved) 1 * RS485 (half-duplex, reserved) |
HDMI output | 1 * HDMI output interface |
USB | 1 * USB interface (used to upgrade device and connect mouse) |
Network | 1 * 10M/100M adaptive Ethernet interface (RJ45) |
Audio | 1 * standard 3.5mm audio jack (reserved) |
Power | DC 12V power interface |
Hardware | |
Power consumption | < 15W |
Operating temperature | -10℃ to 40℃ |
Operating humidity | 10% to 90% RH (non-condensing) |
Storage temperature | -40℃ to 60℃ |
Dimensions (W*D*H)(mm) | 449.7*178.6*115.4 |
Net weight(kg) | 1.4 |
