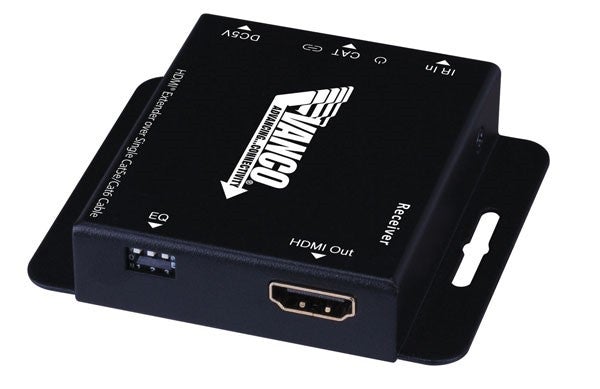

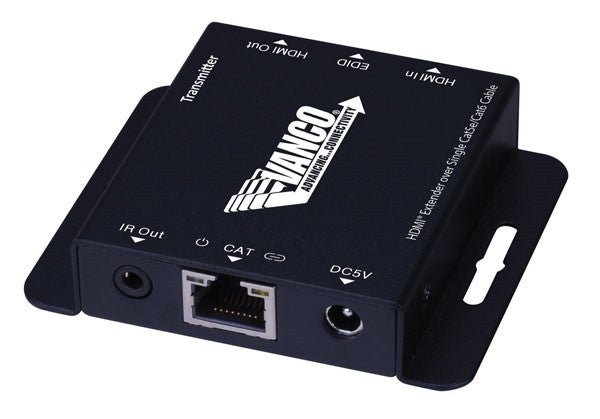

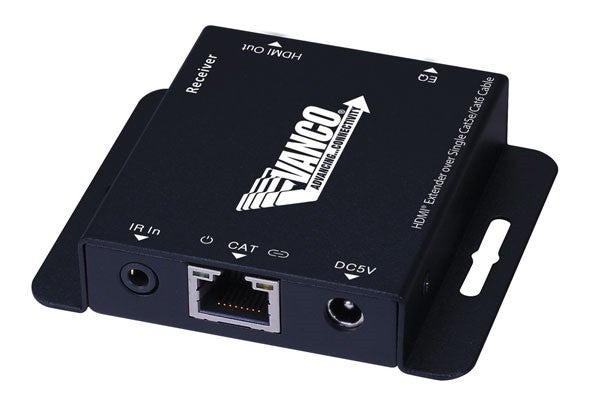

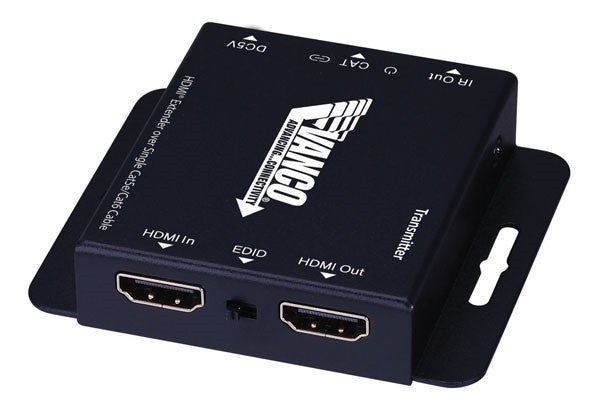

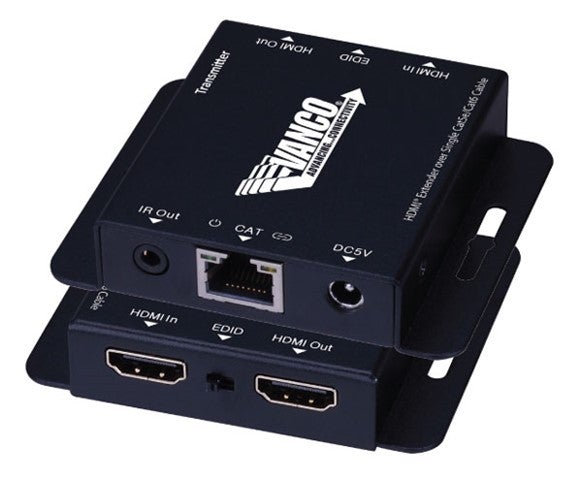

VANCO HDMIEX50 HDMI® over Single Cat5e/Cat6 Cable Extender with PoE

Brand VANCO

You must be logged in to see the price and add to cart.

PN / VAN-HDMIEX50 *

Features & Specs

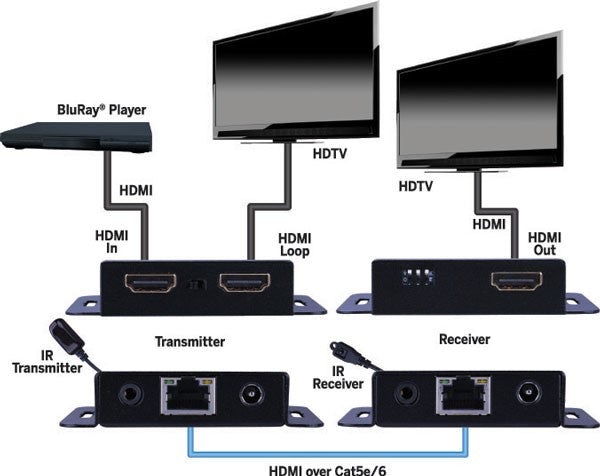

  • Allows HDMI audio/video and control to be transmitted up to 164 ft/ 50m using a single Cat5e or Cat6 cable
  • Features HDMI Loop-out port on the transmitter to split of cascade audio and video signals for additional displays
  • IR pass-through control from the receiver to the transmitter with the provided IR cables
  • Full HD support of 1080p @60Hz
  • Compatible with Dolby, DTS and PCM audio formats
  • EQ settings on the receiver allows for easy adjustment based on cabeling distance
  • EDID settings on the transmitter allow for EDID to be managed through either the HDMi Loop-out of the HDMI output of the receiver for an easy and cost effective solution
  • HDCP Compliant
  • Power supplies: (2) 5V DC
  • Dimensions: 3.3”W x .6” H x 2.6” D

Package Contents:

HDMI Extender Set
1 Wideband IR Tx
1 Wideband IR Rx
2 DC 5V1A power supply
1 User Manual



Part No Pkg. UPC
HDMIEX50 Pkg. 741835106061



  View Cut Sheet
