VANCO VAN-280544: VGA Over Cat5e/Cat6 Extender W/Audio

Call: 800-888-8101

Fill Out Customer Application

PN/ VAN-280544 *

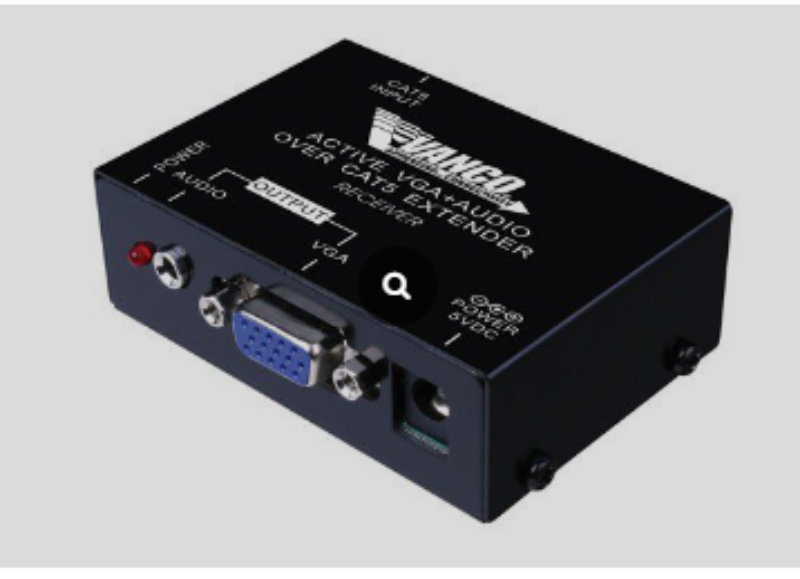

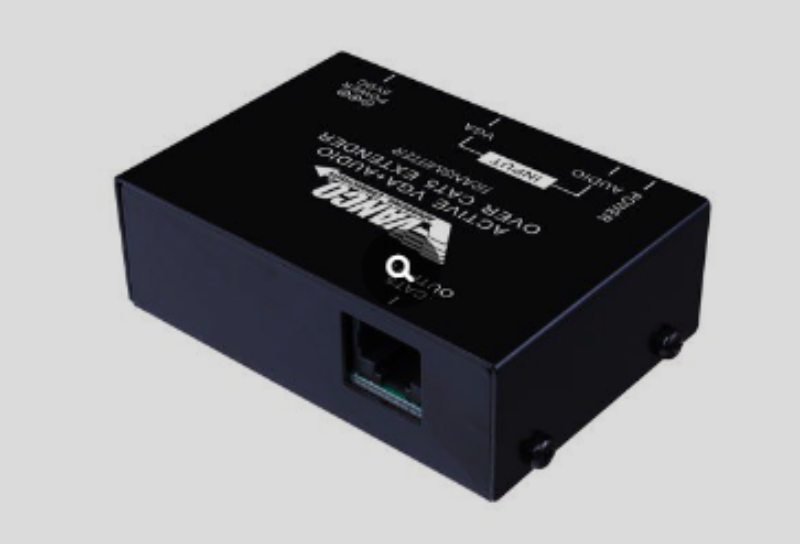

VGA Over Cat5e/Cat6 Extender W/Audio

FEATURES

• Allows VGA and Audio Signals to be Transmitted using one Cat5e or Cat6 cable
• Transmission Range up to 500 ft.
• Built-in equalizer for signal boosting
• Supports computer resolutions UXGA (1600×1200) SXGA (1280×1024)- XGA (1024×768)- SVGA (800×600) and VGA (640×480)
• Supports up to 60 meters (198 ft) with resolution 1600×1200
• Supports up to 80 meters (264 ft) with resolution 1280×1024
• Supports up to 100 meters (330 ft) with resolution 1024×768
• Supports up to 120 meters (396 ft) with resolution 800×600
• Supports up to 150 meters (500 ft) with resolution 640×480
• Power Supply: (2) 5V DC- UL Listed
• Dimensions: 2.88” W x 1”H x 2”D
