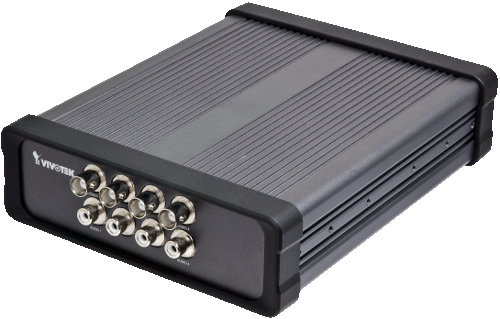

VIVOTEK VS8401 VIDEO SERVER 4CH H.264 30 fps
Couldn't load pickup availability
PN / VIV-VS8401 *
Overview
VIVOTEK VS8401, the new milestone in video server security performing 4-CH high resolution with high frame rate in H.264, is able to convert analog video into digital video with the highest quality. The H.264 compression format drastically reduces the file sizes and conserves valuable bandwidth and storage space. The VS8401 supports simultaneous dual streams to be transmitted in H.264, MPEG-4 and MJPEG formats for versatile applications. The streams can also be individually configured with separated frame rates, resolution, and image quality so as to meet different platforms or bandwidth constraints.
Featured with intelligent video functions, such as motion detection & tamper detection, the VS8401 is capable of upgrading an analog camera into an intelligent camera. The tamper detection feature can detect events such as blockage, redirection, defocus, and spray-painting of camera lens, making it an intelligent solution to possible camera obstruction. Furthermore, it also upgrades the security level of the IP surveillance system with the network security protocols, HTTPS and 802.1x. It is also designed with Giga LAN for large transmission need and DC 12V / AC 24V compatible power input design. These features make it easy to install and integrate with the existing analog system.
The built-in SD/SDHC card slot offers a convenient and portable storage option to prevent data loss in case of network disconnection. Monitoring with VIVOTEK's ST7501 as the video management software for better scalability and easy-to-use operation is another delightful benefit. Most importantly, it is designed for rack mount solution for easy installation. The solution for video server is a pioneering idea in the world. The innovative vision of video server, VS8401, helps you easily upgrade to a full-featured, high-end IP surveillance solution!
Features
- Up to 30 fps in D1 Resolution
- Real-time H.264, MPEG-4 and MJPEG compression (Triple Codec)
- 4-CH Video and Audio In
- Two-way Audio
- RS-485 Interface for PTZ Camera Control
- 4 Digital I/O for External Sensor and Alarm
- Built-in SD/SDHC Card Slot for On-board Storage
- DC 12V / AC 24V Compatible Power Input
- Professional Rack Mount Compatible Design
- Supports Gigabit Ethernet Data Transmission
Specifications
| Camera Control | PTZ camera control through RS-485 Supported devices and protocols: DynaDome / SmartDome, Pelco D, LiLin, Pelco P, Samsung scc643, and customized types Supports CGI command serial driver |
| Video | Compression: H.264, MPEG-4 & MJPEG Streaming: Simultaneous dual streams H.264 streaming over UDP, TCP, HTTP or HTTPS MPEG-4 streaming over UDP, TCP, HTTP or HTTPS MJPEG streaming over HTTP or HTTPS Supports activity adaptive streaming for dynamic frame rate control Supports 3GPP mobile surveillance Frame rates: H.264: Up to 30/25 fps @ 720 x 480 (NTSC) /720 x 576 (PAL) per channel, Up to 180 fps at D1 in total MPEG-4: Up to 30/25 fps @ 720 x 480 (NTSC) /720 x 576 (PAL) per channel, Up to 80 fps at D1 in total MJPEG: Up to 30/25 fps @ 720 x 480 (NTSC) /720 x 576 (PAL) per channel , Up to 240 fps at D1 in total |
| Image Settings | Adjustable image size, quality, and bit rate Time stamp and text caption overlay Flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance and exposure control Supports privacy masks |
| Audio | G.711 audio encoding, bit rate: 64 kbps, μ-Law or A-Law Interface: Audio output Terminal block x 4 Audio input up to 1Vrms, 3.5 m Phone Jack Supports two-way audio Supports audio mute |
| Networking | 10/100/1000 Mbps Gigabit Ethernet, RJ-45 * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. ONVIF support Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, ARP, ICMP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X |
| Triple-window video motion detection 4 D/I & 4 D/O for external sensor and alarm Event notification using HTTP, SMTP, FTP Local recording of MP4 files Tamper Detection |
|
| On-board Storage | SD/SDHC card slot |
| Security | Multi-level user access with password protection IP address filtering HTTPS encrypted data transmission 802.1X port-based authentication for network protection |
| Users | Live viewing for up to 10 clients |
| Dimensions | Depth: 189mm Width: 153mm Height: 49.3mm |
| Weight | Net: 800 g |
| LED Indicator | System power and status indicator System activity and network link indicator Local storage activity indicator |
| Power | 12V DC 24V AC Power consumption: Max. 24 W |
| Approvals | CE C-Tick FCC LVD VCCI |
| Operating Environments | Temperature: -10 ~ 50 °C (14 ~ 122 °F) Humidity: 20% ~ 80% |
| Viewing System Requirements | OS: Microsoft Windows 7 / Vista / XP / 2000 Browser: Mozilla Firefox Browser: Internet Explorer 7.x or above VLC: 10.5 or above QuickTime: 6.5 or above Cell phone: 3GPP player Real Player 10.5 or above |
| Installation Management and Maintenance | RS-485: Half Duplex Installation Wizard 2 ST7501 32-channel recording software Supports firmware upgrade |
| Applications | SDK available for application development and system integration |
| Warranty | 24 Months |
