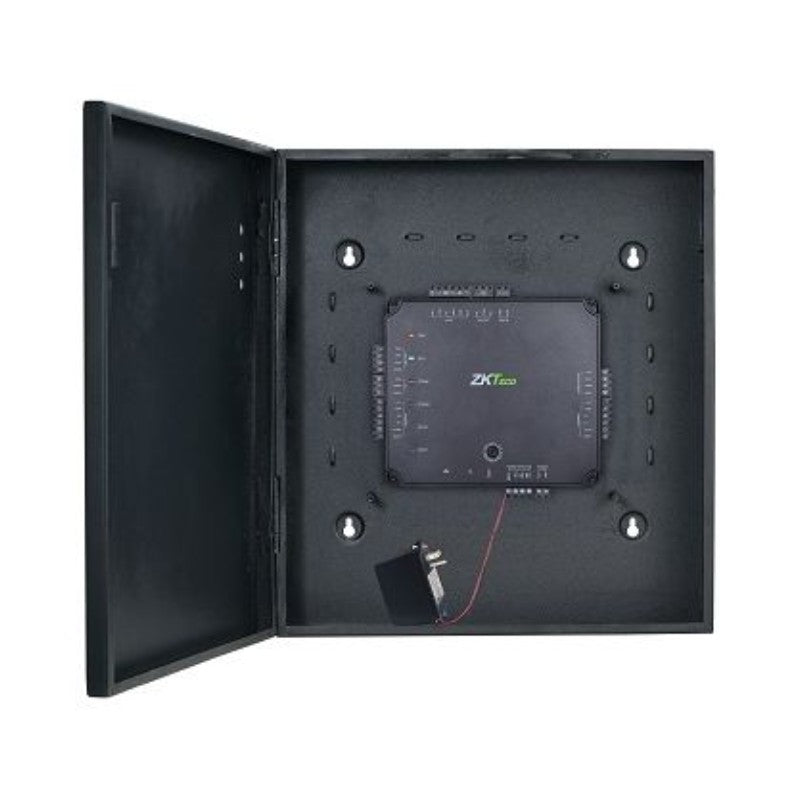

Zkteco Atlas100-BUN: One-Door Access Control Panel w/ PoE + Metal Cabinet

Call: 800-888-8101

Fill Out Customer Application

PN / ZKT-ATLAS100-BUN * | Download data sheet

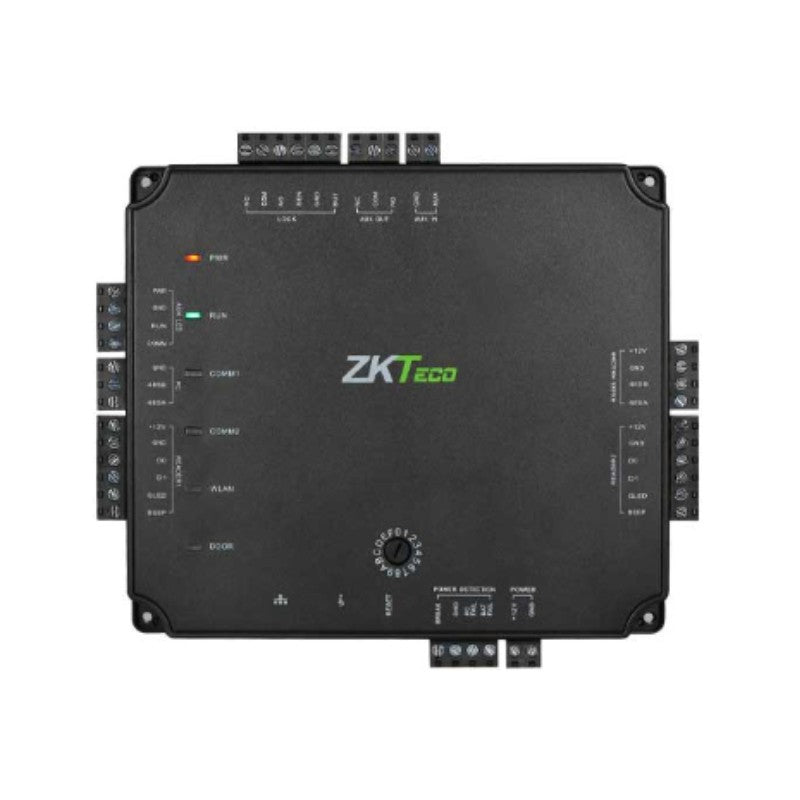

ZKTeco One-Door Access Control Panel

The ZKTeco Atlas100-BUN Access Control Panel is the best simple and affordable access control panel. It controls one door, and has no software. The access control panel is PoE powered and communicates via Wi-Fi. The bundle includes one access control panel and one metal enclosure.

Product Overview

Advanced Access Control
No software required. Built-in Web Application provides Advanced Access Control including User Enrollment & Management, Door Control & Monitoring, Lockdown, Reporting, Maps, Anti-Passback, First-Card Opening, Multi-Card Opening, Card Design and Duress PINs.

Door Control
User-programmable auxiliary relays can be used to control lights, alarms, annunciators, intrusion detection panels, additional locking devices, or any other external electrical device which can be controlled by a switch.

Capacity
1 Primary panel can support up to 20 Secondary panels. Maximum 84 doors can be supported when using all 21 panels. Each Atlas Proxy Series panel can store up to 5,000 users and 10,000 transactions plus unlimited archive downloads.

Choice of Readers
Atlas Series supports ZKTeco KR series and any 3rd-party readers which communicate with Wiegand or OSDP communication protocols.

Communication
Atlas Series panels communicate securely over wired & wireless TCP/IP networks using SSL/TLS. Supported browsers include Google Chrome, Mozilla Firefox and Microsoft Edge.

Mobile App
Numerous convenient features include: remotely unlocking doors, universal lockdown & recovery, access to events & alarms, adding/modifying users.

Power
Atlas Series uses a 12V DC 3A power supply and also supports Power over Ethernet (PoE).

Lowest Total Cost of Ownership
Atlas Bio Series panels come in several models to suit different project needs and reduce the cost of unused capacity. Easy-to-use embedded web application gets you up and running quickly. Firmware is field-upgradeable, allowing your system to stay current with the latest features and security enhancements.
